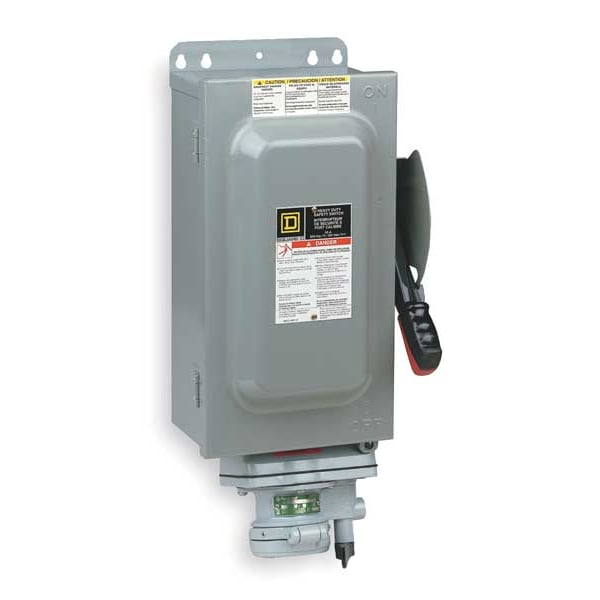

Interruptor de seguridad fusible, resistente, 600V AC, 3PST, 30 A, NEMA 12, 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 5 HP @ 600 V AC |
| NEMA Enclosure Type | 3R, 12 |
| IP Rating | Not Rated |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Fusible / Nonfusible | Fusible |
| Width | 10-1/2 in |
| Fuse Kit (Class R) | Mfr. No. RFK03H |
| Depth | 7 in |
| For Use With | Class H, J, R, T Fuse |
| Standards | UL listed |
| Height | 16-1/2 in |
| Fuse Type | Class H, K, R or J |
| Electrical Connection | Receptacle |
| Weight | 13 kg |
| Features | Crouse-Hinds Arktite(R) Compatible Receptacle |
| Mounting | Surface |
| Gauge/Conductor | 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper) |
| Neutral Assembly Included | No |
| Enclosure Type | Enclosed |
| Environment | Indoor |
| Includes Interlocked Receptacle | Yes |
| Mounting Style | Surface Mount |
| Compatible with Manufacturer Model Number | RFK03H |
| Horsepower @ 600V AC | 20 HP |
| Current Rating | 30 A |
| For Fuse Class | Class H, Class J, Class K, Class R |
| NEMA Enclosure Rating | 12K |
| Horsepower @ 480V AC | 15 HP |
| Housing Material | Steel |
| Compatible with Manufacturer Part Number | RFK03H |
| Compatible Manufacturer Part Number | RFK03H |
| Compatible with Manufacturer Model Number [NEW] | RFK03H |
| Compatible Manufacturer Model Number | RFK03H |
| For Use with Mfr. Model Number | RFK03H |
| Package Quantity | 1 |
