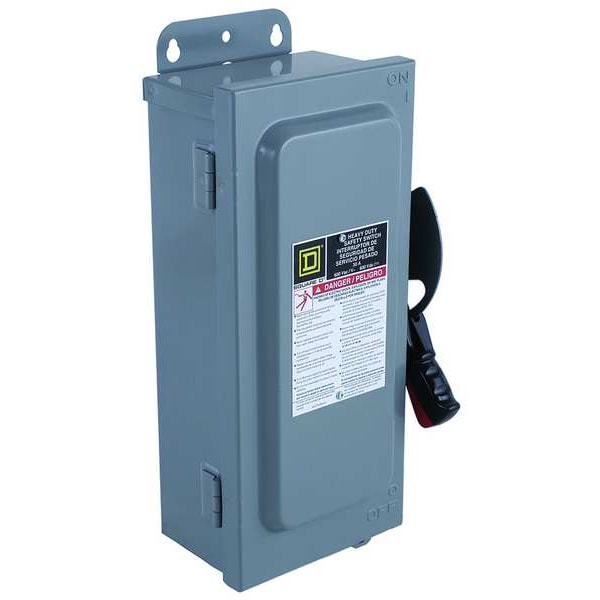

Interruptor de seguridad con fusible, resistencia pesada, 600V CA, 3PST, 60 A, NEMA 12
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 30 HP @ 480 V AC, 50 HP @ 600 V AC |
| NEMA Enclosure Type | 12 |
| IP Rating | 52 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Standards | UL listed |
| Fuse Kit (Class R) | Mfr. No. RFK06H |
| For Use With | Class H, J, R, T Fuse |
| Fusible / Nonfusible | Fusible |
| Height | 16-1/2 in |
| Depth | 7 in |
| Width | 10-1/2 in |
| Gauge/Conductor | 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper) |
| Enclosure Type | Enclosed |
| Features | Hubbellock(R) Compatible Receptacle |
| Mounting | Surface |
| Weight | 8 kg |
| Electrical Connection | Receptacle |
| Compatible with Manufacturer Model Number | RFK06H |
| Environment | Indoor |
| Horsepower @ 480V AC | 30 HP |
| Includes Interlocked Receptacle | Yes |
| NEMA Enclosure Rating | 12K |
| Mounting Style | Surface Mount |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Current Rating | 60 A |
| Horsepower @ 600V AC | 50 HP |
| Housing Material | Galvanized Steel |
| Compatible Manufacturer Part Number | RFK06H |
| Compatible with Manufacturer Part Number | RFK06H |
| Compatible with Manufacturer Model Number [NEW] | RFK06H |
| Compatible Manufacturer Model Number | RFK06H |
| For Use with Mfr. Model Number | RFK06H |
| Package Quantity | 1 |
