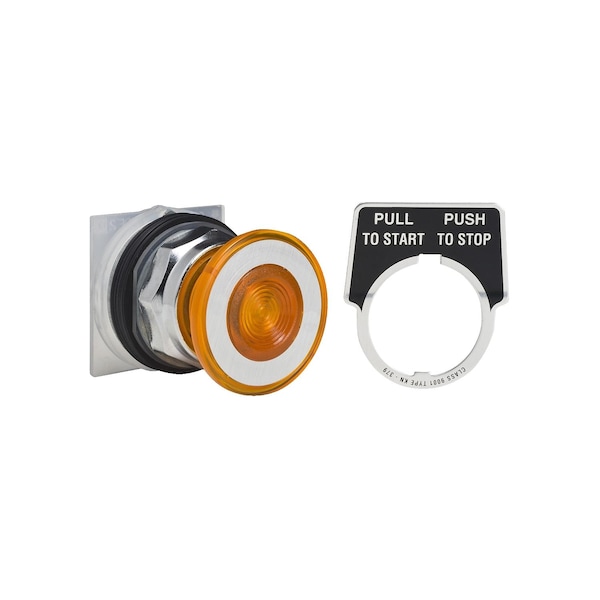

Botón pulsador iluminado, Harmony 9001K, metal, tipo hongo de 41mm, color ámbar, 30mm, 2 posiciones, empujar-tirar, 110-120V, 1 contacto normalmente abierto.
| Size | 30 mm |
|---|---|
| Type of Operator | push-pull |
| Item | PUSH BUTTON 600VAC 10A 30MM T-K |
| Bezel Material | metal |
| Standards | CE, CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR, NEMA |
| Supply Frequency | 50...60 Hz |
| Contact Operation | standard |
| [Us] Rated Supply Voltage | 110...120 V |
| Operating Position | any position |
| Operator Additional Information | screw-on plastic |
| [Ie] Rated Operational Current | 10 A, AC-15, 10 A, DC-13 |
| Device Short Name | K |
| Device Presentation | product |
| Operator Position Information | 2 positions |
| Contacts Type And Composition | O, 1 C |
| Light Source | incandescent |
| Light Block Supply | via integral transformer |
| Product or Component Type | push-button |
| Bulb Base | BA 9s |
| Range of Product | Harmony 9001K |
| Connections - Terminals | screw clamp terminals |
| Nema Degree of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Operator Profile | amber mushroom Ø 41 mm |
| Cap/Operator or Lens Colour | amber |
| Mounting Diameter | 30 mm |
| Product Certifications | CE || CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || NEMA |
| Package Quantity | 1 |
