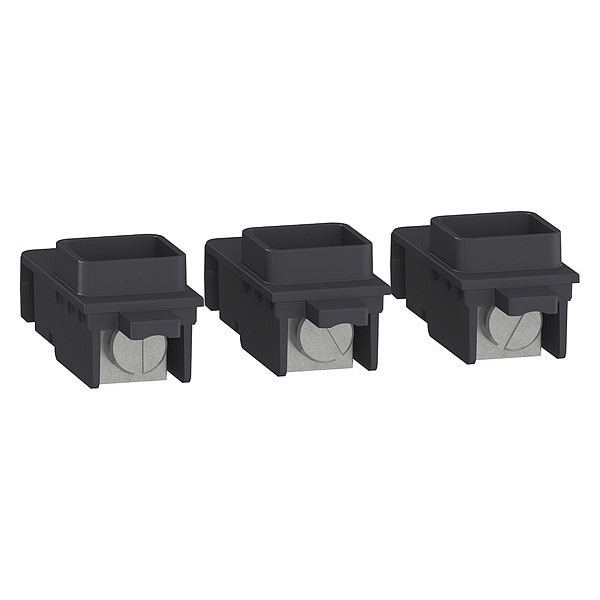

Lug Kit, Compact NSXm Circuit Breaker, Powerpact(R) B Circuit Breaker, 125A, 3 Poles
| Item | Lug Kit |
|---|---|
| For Use With | Compact NSXm Circuit Breaker, Powerpact(R) B Circuit Breaker |
| Amps | 125A |
| Number of Poles | 3 |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 14 AWG |
| Includes | (3) Aluminum Mechanical Lug |
| Conductor Material | Copper |
| Number of Lugs Included | 3 |
| Line Rated Current | 16-125 A |
| Connections - Terminals | screw terminal 2.5-70 mm2² AWG 14...AWG 2/0) |
| Range Compatibility | PowerPact (PowerPact B) || ComPact (ComPact NSXm) |
| Mounting Mode | fixed |
| Product Or Component Type | cable connector |
| Package Quantity | 1 |
