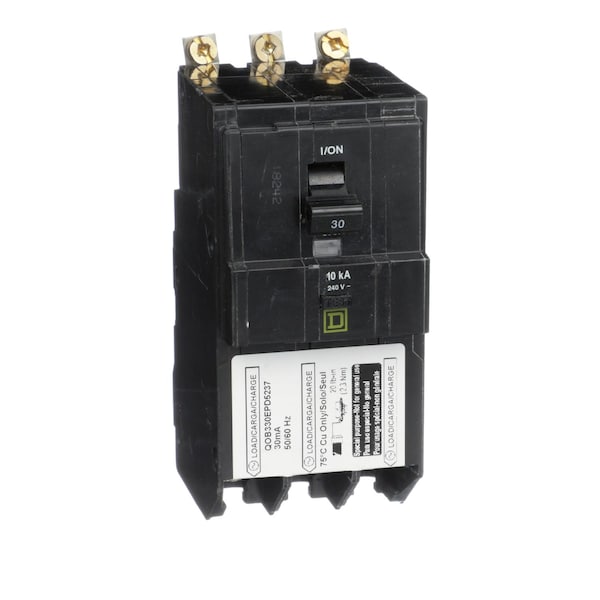

Mini circuit breaker, QO, 30A, 3 pole, 240VAC, 10kA, bolt on, 30mA grd fault B, ring
| Item | Mini CB,QO,30 A,3P,240 V,10 kA,Bol |
|---|---|
| Voltage | 240V AC |
| Max. Amps | 30 |
| Circuit Breaker Type | ground fault protecting class B 30 mA |
| Width | 57 mm |
| Depth | 74 mm |
| Height | 105 mm |
| Description/Special Features | Mercury Free |
| Standards | UL Listed; CSA |
| Range of Product | QO |
| Circuit Breaker Application | not rated |
| Breaking Capacity | 10 kA 240 V AC |
| Awg Gauge | AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium |
| Mounting Mode | bolt-on |
| [Ue] Rated Operational Voltage | 240 V AC |
| Product or Component Type | miniature circuit-breaker |
| Poles Description | 3P |
| Number of Spaces Required | 2 |
| Electrical Connection | ring tongue |
| Ambient Air Temperature For Operation | 40°C |
| Tightening Torque | 4-4 N.m, 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4) |
| Package Quantity | 1 |
