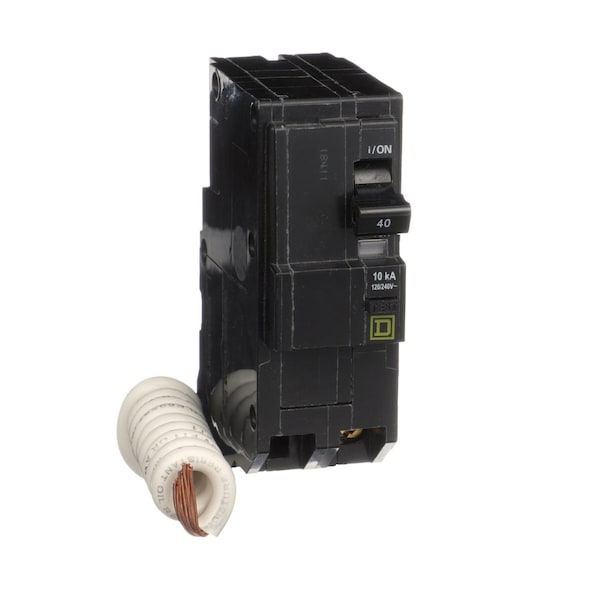

Mini circuit breaker, QO, 40A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B
| Item | Mini CB,QO,40 A,2P,120/240 V,10 kA, |
|---|---|
| Voltage | 120/240V AC; 120V AC |
| Max. Amps | 40 |
| Circuit Breaker Type | ground fault protecting class B 30 mA |
| Width | 38 mm |
| Depth | 74 mm |
| Height | 105 mm |
| Standards | UL Listed; CSA |
| Description/Special Features | Mercury Free |
| [Ue] Rated Operational Voltage | 120/240 V AC, 120 V AC |
| Range of Product | QO |
| Circuit Breaker Application | not rated |
| Number of Spaces Required | 2 |
| Electrical Connection | box lugs |
| Mounting Mode | plug-in |
| Poles Description | 2P |
| Awg Gauge | AWG 12...AWG 4 aluminium, AWG 14...AWG 6 copper |
| Tightening Torque | 5-5 N.m, 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4) |
| Product or Component Type | miniature circuit-breaker |
| Ambient Air Temperature For Operation | 40°C |
| Breaking Capacity | 10 kA 120/240 V AC, 10 kA 120 V AC |
| Package Quantity | 1 |
