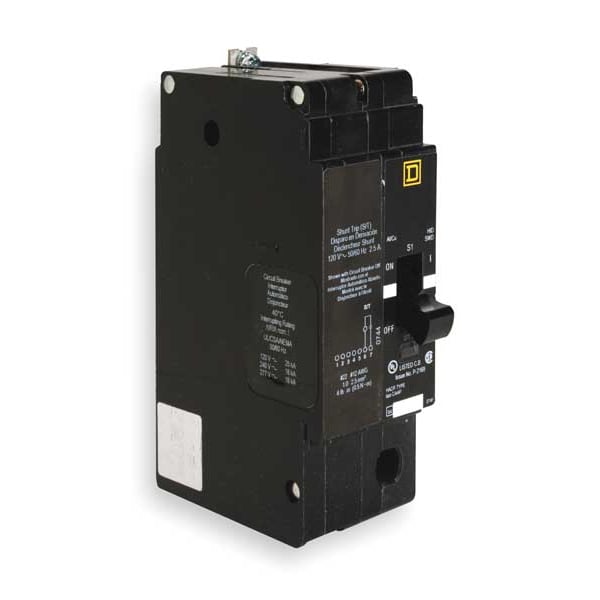

Miniature Circuit Breaker, EDB Series, 40A, 1 Pole, 277V AC, 25kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | EDB |
| Amps | 40A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Circuit Breaker Type | Shunt Trip |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 25kA at 120V AC |
| Trip Type | Thermal Magnetic, Shunt Trip |
| Terminal Connection | Lug |
| Frame Size | 125A, EDB |
| Width | 1.96 in |
| Depth | 4.05 in |
| Height | 5.66 in |
| DC Voltage Rating | Not Rated |
| Standards | cULus, IEC |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Max. Wire Size | 2 AWG |
| For Use With | Square D NF Panelboards |
| Application | HID rated Applications, HACR rated Applications |
| Interrupt Rating | 18 kA at 277/240/120V AC, 25 kA at 120V AC |
| High Amp Trip Setting | 1,800 A |
| Features | Mercury Free |
| Compatible Panelboard/Load Center Series | NF |
| Max. Operating Temp. | 104 deg F |
| Length (Straight Wireway) | 5.66 in |
| Length | 5.66 in |
| Voltage | 277VAC |
| Mounting | Bolt on |
| Package Quantity | 1 |
