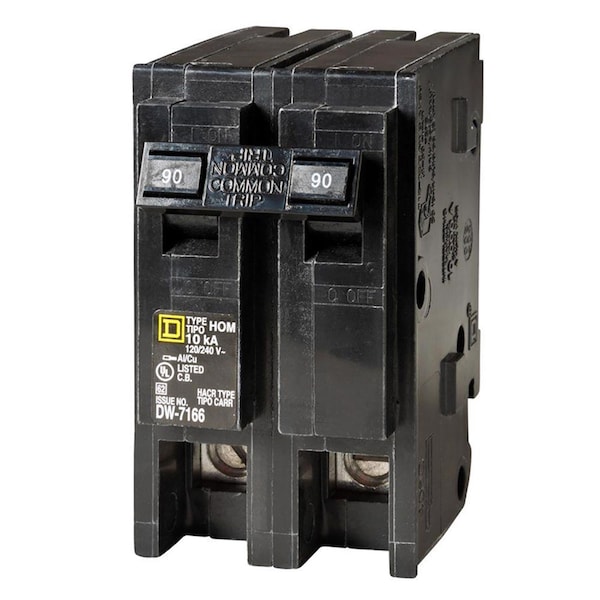

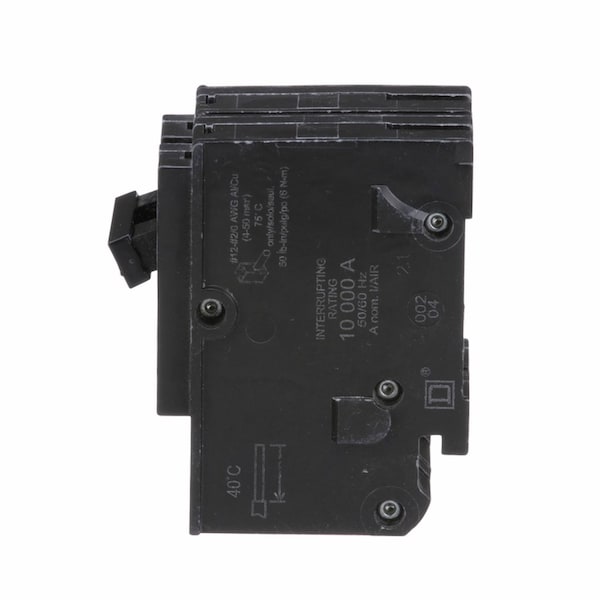

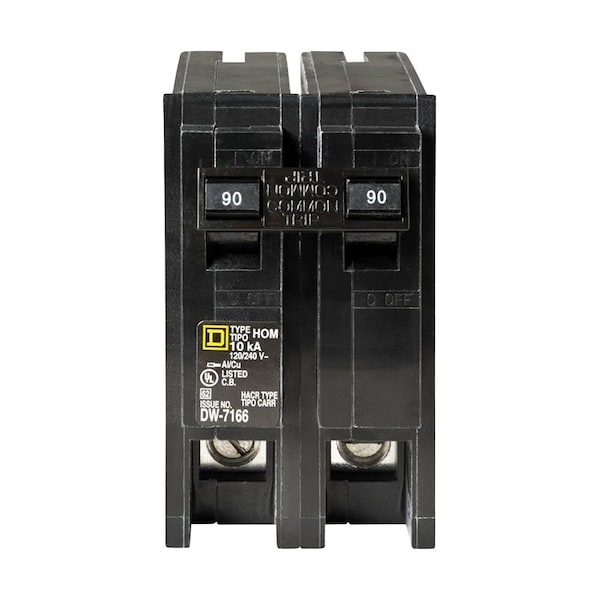

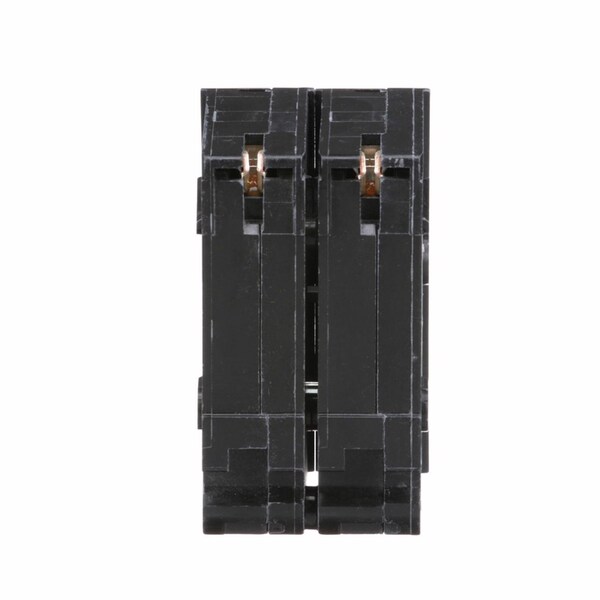

Miniature Circuit Breaker, HOM Series, 90A, 2 Pole, 120/240V AC, 10kA
| Item | Miniature Circuit Breaker |
|---|---|
| Series | HOM |
| Amps | 90A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA |
| Terminal Connection | Lug |

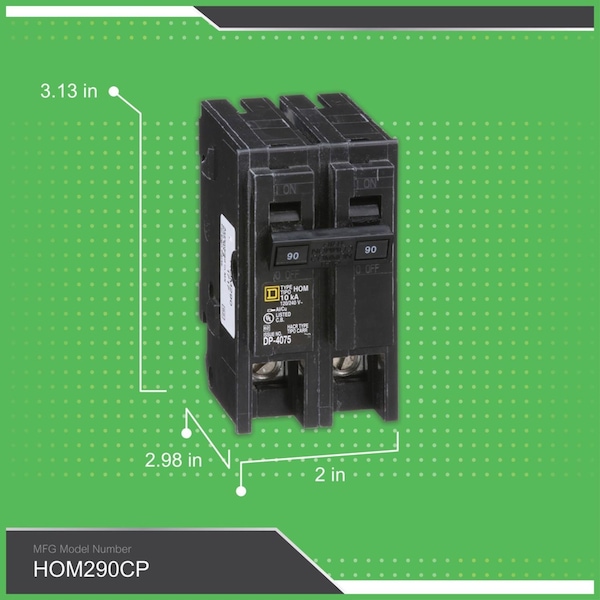

| Width | 2 in |
| Depth | 2.98 in |
| Height | 3.13 in |
| DC Voltage Rating | Not Rated |
| Standards | UL Listed |
| Features | Mercury Free |
| Min. Wire Size | 4 AWG (Cu/Al) |
| Max. Wire Size | 2/0 AWG (Cu/Al) |
| Application | HACR rated Applications |
| Package Quantity | 1 |
