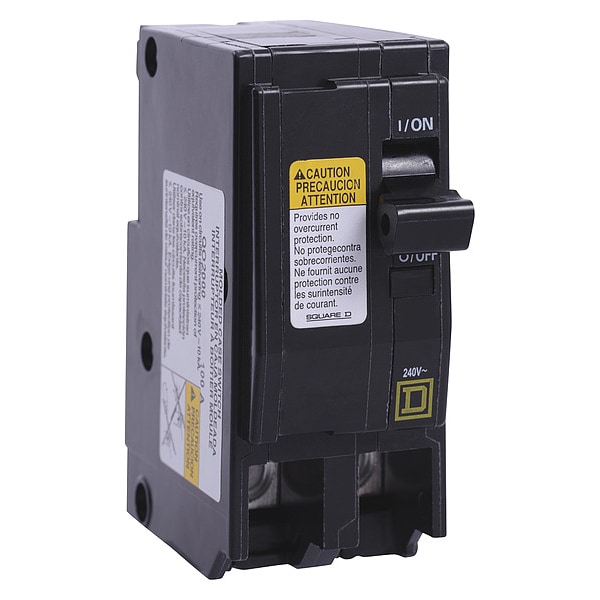

Miniature Circuit Breaker, QO Series, 60A, 2 Pole, 240V AC, 10kA at 240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 60A |
| Number of Poles | 2 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 240V AC |
| Trip Type | Common |
| Terminal Connection | Lug |
| Width | 38 mm |
| Depth | 74 mm |
| Height | 79 mm |
| DC Voltage Rating | Not Rated |
| Standards | UL Listed, CSA |
| Max. Wire Size | 2 AWG (Cu/Al) |
| Min. Wire Size | 8 AWG (Cu/Al) |
| Features | Mercury Free |
| Interrupt Rating | 10 kA at 240V AC |
| Product Type | Nonautomatic Miniature Switch 240V 60A |
| Package Quantity | 1 |
