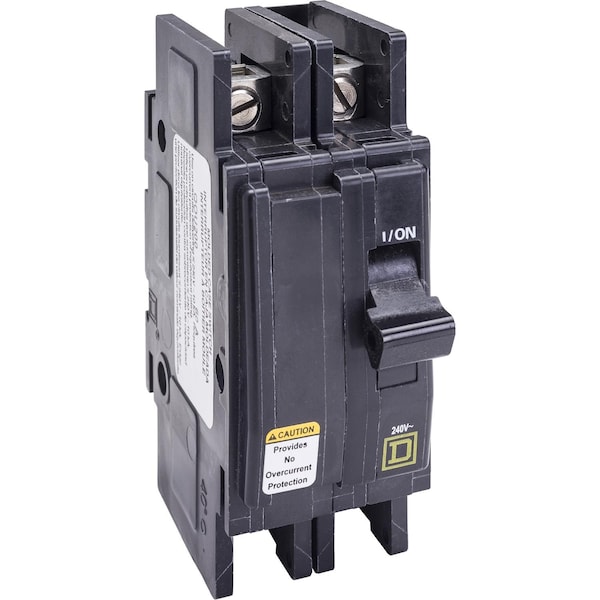

Miniature Circuit Breaker, QOU Series, 60A, 2 Pole, 240V AC, 10kA at 240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOU |
| Amps | 60A |
| Number of Poles | 2 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 10kA at 240V AC |
| Terminal Connection | Slotted Box Lug |
| Frame Size | 100A/QOU |
| Width | 1-1/2 in |
| Depth | 2.95 in |
| Height | 4.05 in |
| DC Voltage Rating | Not Rated |
| Application | HACR rated Applications |
| Standards | UL Listed, CSA |
| Max. Wire Size | 2/0 AWG (Cu/Al) |
| Features | Mercury Free |
| Min. Wire Size | 12 AWG (Cu/Al) |
| Product Type | Nonautomatic Miniature Switch 240V 60A |
| Circuit Breaker Application | HACR rated |
| Tightening Torque | 45 lbf.in (5.08 N.m) (AWG 14 to AWG 2) |
| AWG Gauge | AWG 12 to AWG 2/0 aluminium/copper |
| Product Certifications | UL Listed |
| Package Quantity | 1 |
