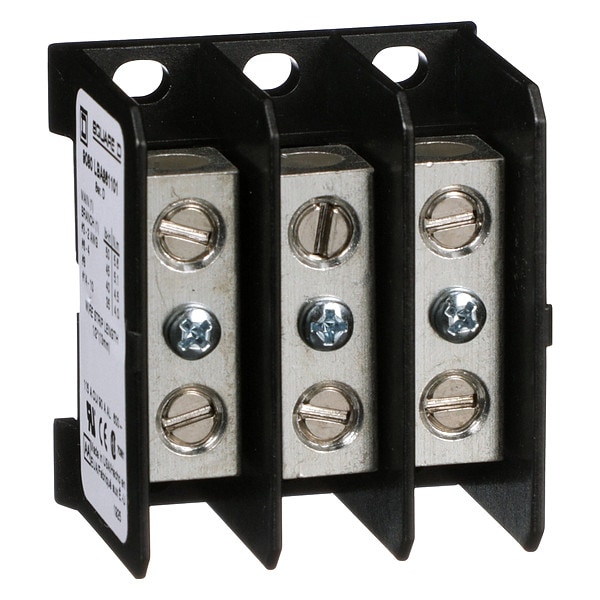

Miniature Distribution Block, Surface Mount, 3 Poles, 14 AWG to 2 AWG, 115 A, 600 V AC/DC, Black
| Item | Miniature Distribution Block |
|---|---|
| Number of Poles | 3 |
| Max. Amps | 115 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 14 to 2 AWG |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | 14 to 2 AWG |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC |
| Standards | CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2 |
| Length | 2.29 in |
| Width | 2.1 in |
| Depth | 1.53 in |
| Length (Straight Wireway) | 2.29 in |
| Maximum Voltage | 600 V AC/DC |
| For Load Copper Wire Size - Maximum | 2 AWG |
| Overall Width | 2.12 in |
| Line Side Connection Type | Lug |
| Terminal Material | Aluminum |
| Number of Circuits | 3 |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| For Line Aluminum Wire Size - Maximum | 2 AWG |
| Load Connections/Pole | 1 |
| Minimum Operating Temperature | -40 deg F |
| For Line Copper Wire Size - Maximum | 2 AWG |
| Secondary Wire Range | 14 to 2 AWG |
| For Conductor Material | Aluminum, Copper |
| Overall Depth | 1.62 in |
| Special Features | 18 Months Warranty, Surface Mount |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| Overall Length | 2.29 in |
| For Line Copper Wire Size - Minimum | 14 AWG |
| Maximum Operating Temperature | 257 deg F |
| Maximum Current - Copper Conductor | 115 A |
| For Line Aluminum Wire Size - Minimum | 14 AWG |
| RoHS Compliant | Yes |
| Primary Wire Range | 14 to 2 AWG |
| Maximum Current - Aluminum Conductor | 90 A |
| Housing Material | Thermoplastic |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Load Side Connection Type | Lug |
| Line Connections/Pole | 1 |
| Housing Color | Black |
| Mounting | Surface Mount |
| Amps | 90 (Al conductor), 115 (Cu Conductor) |
| Short Circuit Current Rating | 65 kA |
| Features | Mercury Free |
| Max. Operating Temp. | 257°F |
| Material | Thermoplastic |
| Min. Operating Temp. | -40°F |
| Wire Strip Length | 1/2 in (Line) |
| Electrical Connection | Tin plated Aluminium Lugs |
| Package Quantity | 1 |
