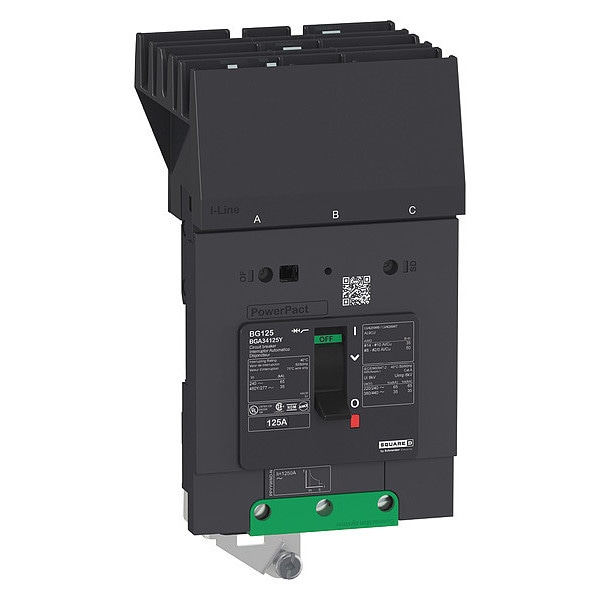

Molded Case Circuit Breaker, BGA Series, 100A, 3 Pole, 277/480V AC, 65kA at 240V AC, B Curve
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | BGA |
| Amps | 100A |
| Number of Poles | 3 |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | I-Line |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug, I-Line |
| Phase Connection | ABC |
| Frame Size | 125A/B |
| Width | 3.19 in |
| Depth | 3-1/2 in |
| Height | 5.39 in |
| DC Voltage Rating | 250V DC |
| Curve Type | B |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489 |
| For Use With | Electrical Distribution Equipment, Industrial Control Panels |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 14 AWG |
| Application | HACR rated Applications; Distribution |
| Features | Mercury Free; PVC Free |
| Interrupt Rating | 65 kA at 220/240/208Y/120V AC, 18 kA at 500/525/600Y/347V AC, 35 kA at 380/415/440/480/277V AC, 20 kA at 250V DC |
| Color | Gray |
| Min. Operating Temp. | -13 deg F |
| Max. Operating Temp. | 158 deg F |
| Mounting | Clip-On |
| Package Quantity | 1 |
