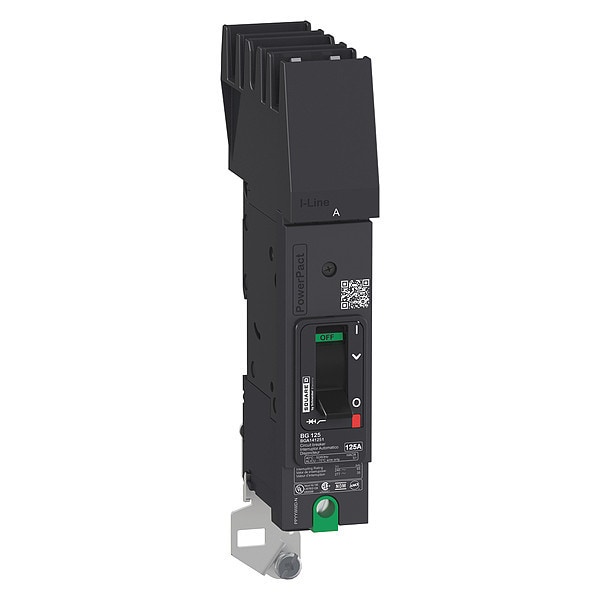

Molded Case Circuit Breaker, BGA Series, 20A, 1 Pole, 277/480V AC, 65kA at 240V AC, B Curve
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | BGA |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | I-Line |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug, I-Line |
| Phase Connection | A |
| Frame Size | 125A/B |
| Width | 1.06 in |
| Depth | 3-1/2 in |
| Height | 5.39 in |
| DC Voltage Rating | 125V DC |
| Curve Type | B |
| For Use With | Electrical Distribution Equipment, Industrial Control Panels |
| Standards | CCC, CSA Certified, EAC, IEC, NOM, UL Listed |
| Max. Wire Size | 2/0 AWG |
| Min. Wire Size | 14 AWG |
| Application | HACR rated Applications; Distribution |
| Color | Gray |
| Interrupt Rating | 65 kA at 208Y/120/220/240V AC, 35 kA at 480Y/277V AC, 20 kA at 600Y/347V AC/125V DC |
| Features | Mercury Free; PVC Free |
| Mounting | Clip-On |
| Package Quantity | 1 |
