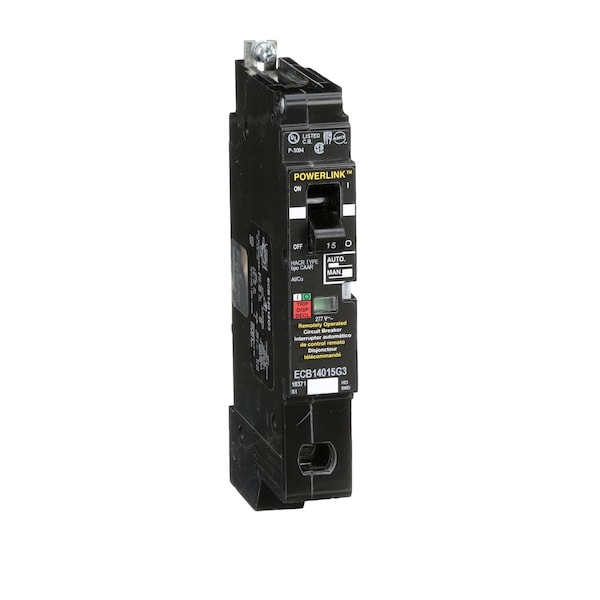

Molded Case Circuit Breaker, ECB-G3 Series, 15A, 1 Pole, 277/480V AC, 65kA at 120V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | ECB-G3 |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 65kA at 120V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Bolt |
| Frame Size | 125A, E |
| DC Voltage Rating | Not Rated |
| Features | Mercury Free |
| Max. Wire Size | 8 AWG (Cu/Al) |
| Interrupt Rating | 14 kA at 277V AC, 65 kA at 120V AC |
| Standards | UL Listed, CSA |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Application | HACR rated Applications, HID rated Applications, Switching Duty rated Applications |
| Package Quantity | 1 |
