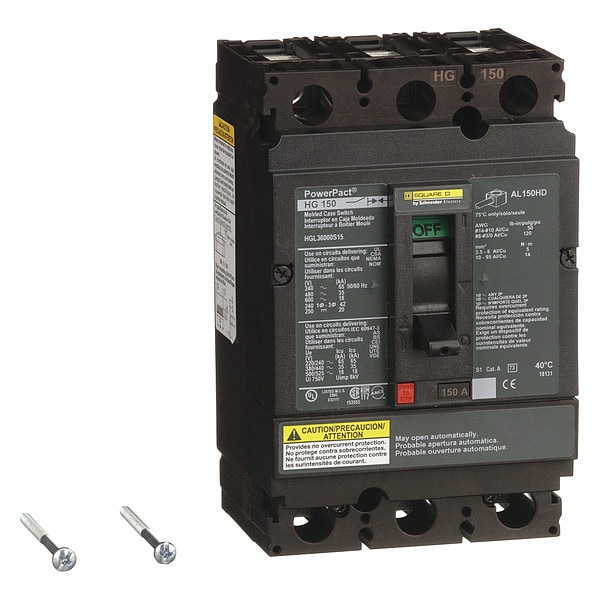

Molded Case Circuit Breaker, HGL Series, 150A, 3 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | HGL |
| Amps | 150A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Shunt Trip |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 150A, HG |
| Width | 4.12 in |
| Depth | 4.36 in |
| Height | 6.4 in |
| DC Voltage Rating | 250/500V DC |
| High Amp Trip Setting | 2,250 A |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 14 AWG |
| Standards | CCC, CE, CSA, IEC, NMX, UL Listed |
| Low Amp Trip Setting | 1,125 A |
| Features | Mercury Free; PVC Free |
| Max. Operating Temp. | 104 deg F |
| Mounting | Free Standing |
| Package Quantity | 1 |
