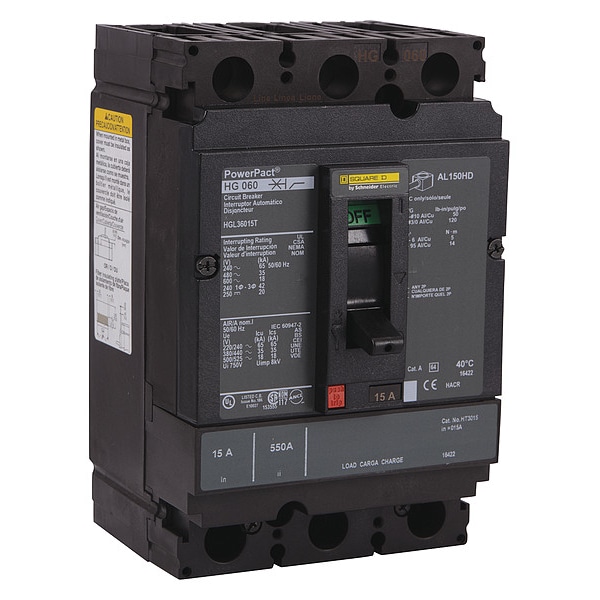

Molded Case Circuit Breaker, HJL Series, 15A, 3 Pole, 600V AC, 100kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | HJL |
| Amps | 15A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 100kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Frame Size | 150A, HJ |
| Width | 4.12 in |
| Depth | 4.36 in |
| Height | 6.4 in |
| DC Voltage Rating | 250V DC |
| Features | Mercury Free; PVC Free |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Standards | UL, CSA, NEMA, NOM, CE |
| Interrupt Rating | 100 kA at 220/240V AC, 65 kA at 380/440/415/480V AC, 25 kA at 500/525/600V AC, 20 kA at 250/500V DC |
| Max. Wire Size | 3/0 AWG (Cu/Al) |
| High Amp Trip Setting | 750 A |
| Color | Black |
| Application | HACR rated Applications; Distribution |
| Rated Insulation Voltage | 750 V IEC 60947-2 |
| Suitability For Isolation | Yes IEC 60947-2 |
| Utilisation Category | Category A |
| Breaking Capacity | 100 kA 240 V AC 50/60 Hz UL 489; 65 kA 480 V AC 50/60 Hz UL 489; 25 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489 |
| IP Degree Of Protection | Front cover IP40 IEC 60529 |
| Tightening Torque | 44.25 lbf.in (5 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 in² (10 to 95 mm²) (AWG 8 to AWG 3/0) |
| Device Application | Distribution |
| Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Product Name | PowerPact H |
| Number Of Slots | 2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in) |
| Protected Poles Description | 3t |
| Power Wire Stripping Length | 0.63 in |
| Continuous Current Rating | 0.8 |
| Rated Service Breaking Capacity | 100 kA 220/240 V AC 50/60 Hz IEC 60947-2; 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 25 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2 |
| AWG Gauge | AWG 14 to AWG 3/0 aluminium/copper terminal |
| Ambient Air Temperature For Operation | 28 to 158°F (-2 to 70°C) |
| Network Frequency | 50/60 Hz |
| Terminal Identifier | AL150HD |
| Ambient Air Temperature For Storage | -58 to 185°F |
| Circuit Breaker Application | HACR rated |
| Pollution Degree | 3 IEC 60947-1 |
| Local Signalling | Switched off (OFF) 1 trip indicator green) |
| Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| Operating Altitude | Less than 6561.68 ft (2000 m) without derating; 5000 m with derating |
| Product Certifications | CSA, UL, NOM |
| Magnetic Hold Current | 350 A |
| Communication Interface | Modbus, Ethernet |
| Quality Labels | CE |
| Breaking Capacity Code | J |
| Package Quantity | 1 |
