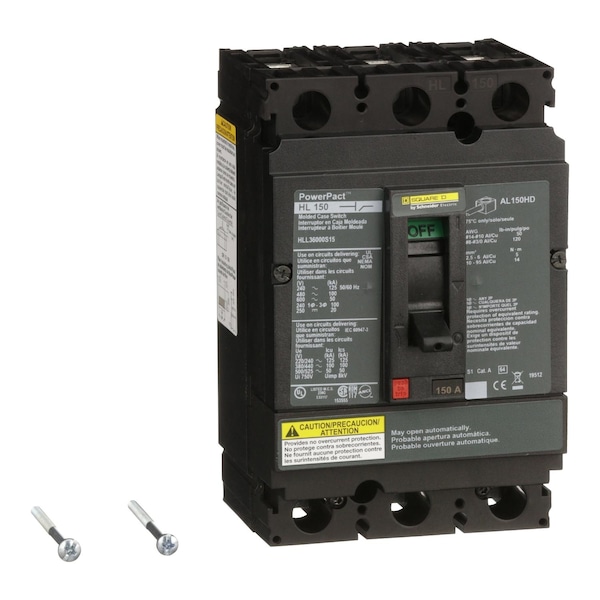

Molded Case Circuit Breaker, HLL Series, 150A, 3 Pole, 600V AC, 125kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | HLL |
| Amps | 150A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 125kA at 240V AC |
| Trip Type | Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Frame Size | 150A, HL |
| Width | 4.12 in |
| Depth | 4.36 in |
| Height | 6.4 in |
| DC Voltage Rating | 250/500V DC |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Standards | CE, IEC, CCC, CSA, NMX, UL Listed |
| Features | Mercury Free; PVC Free |
| Max. Wire Size | 3/0 AWG (Cu/Al) |
| High Amp Trip Setting | 2,250 A |
| Tightening Torque | 44.25 lbf.in (5 N.m) 0.00 to 0.15 in² (2.5 to 95 mm²) (AWG 14 to AWG 3/0) |
| Rated Operational Voltage | 600 V AC; 250 V DC |
| Poles Description | 3P |
| Product Certifications | CSA, IEC, UL Listed, CCC, CE, NMX |
| Breaking Capacity Code | L |
| AWG Gauge | x AWG 14 to AWG 3/0 ( aluminium/copper ) |
| Terminal Identifier | AL150HD |
| Short-Circuit Withstand | 125 kA 240 V UL 489; 100 kA 480 V UL 489; 50 kA 600 V UL 489 |
| Package Quantity | 1 |
