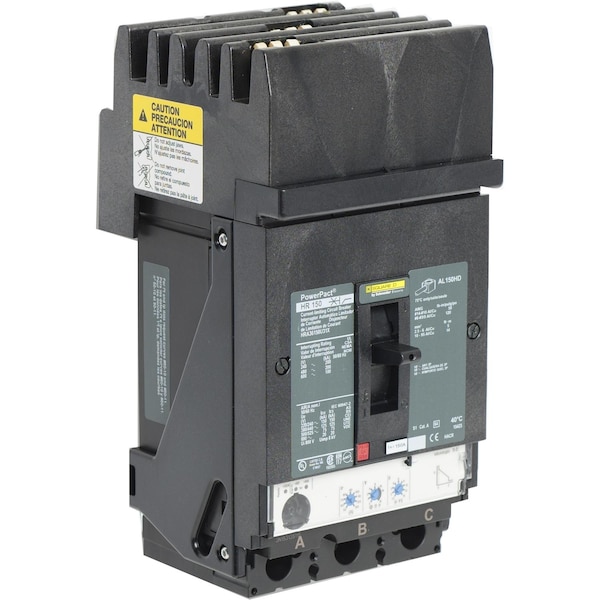

Molded Case Circuit Breaker, HRA Series, 150A, 3 Pole, 600V AC, 200kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | HRA |
| Amps | 150A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Micrologic Standard W LI Functionality |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | I-Line |
| Max. AIR Rating | 200kA at 240V AC |
| Trip Type | Electronic |
| Terminal Connection | Lug, I-Line |
| Phase Connection | ABC |
| Frame Size | 150A, HR |
| Width | 4.09 in |
| Depth | 3.39 in |
| Height | 6.42 in |
| DC Voltage Rating | Not Rated |
| Application | HACR rated Applications; Distribution |
| Interrupt Rating | 150 kA at 220/240V AC, 125 kA at 380/440/415V AC, 75 kA at 500/525V AC, 20 kA at 690V AC, 200 kA at 240/480V AC, 100 kA at 600V AC |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Max. Wire Size | 3/0 AWG (Cu/Al) |
| Features | Mercury Free; PVC Free |
| Color | Black |
| Standards | UL, CSA, NEMA, NOM, CE |
| Package Quantity | 1 |
