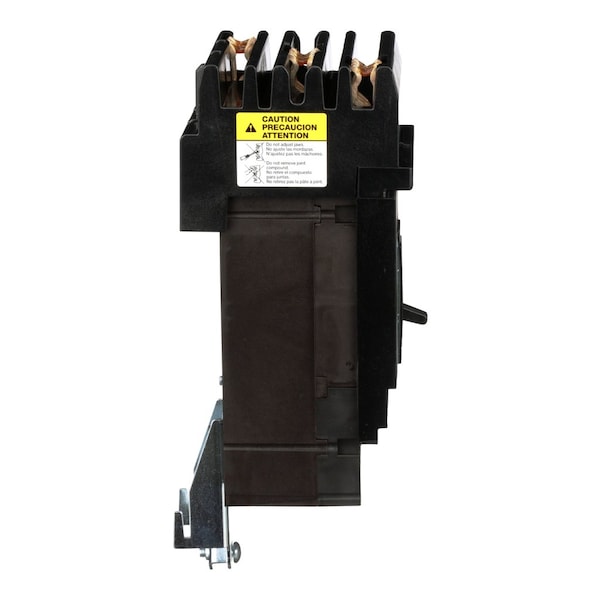

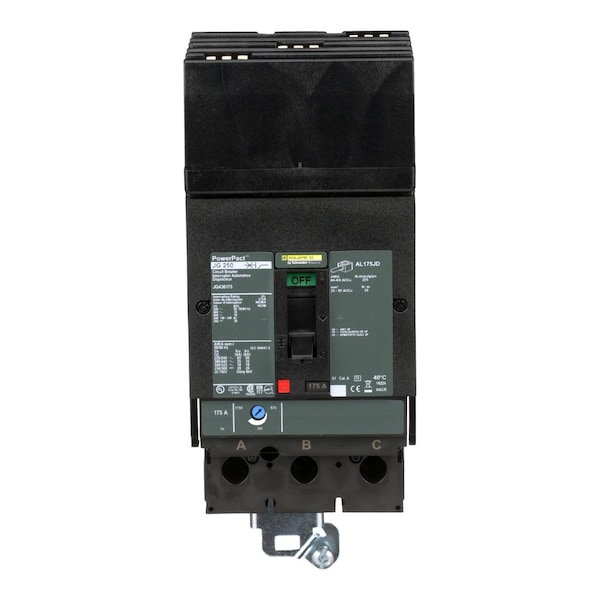

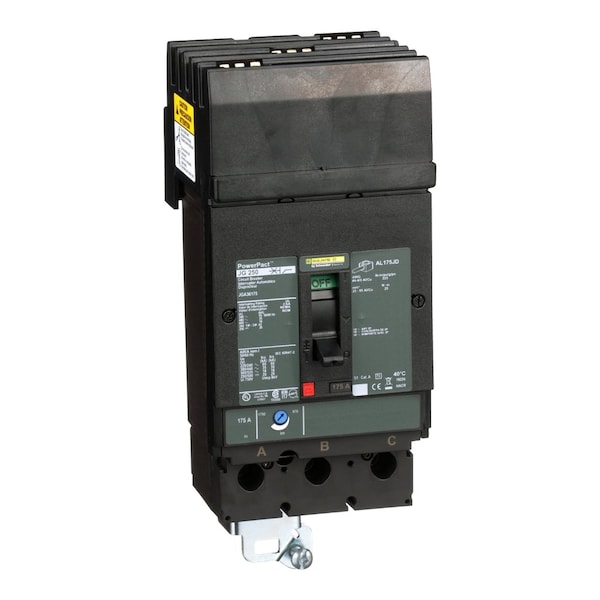

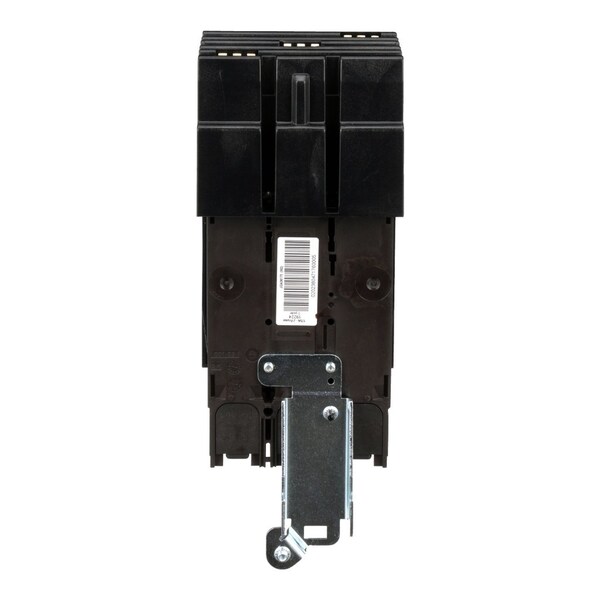

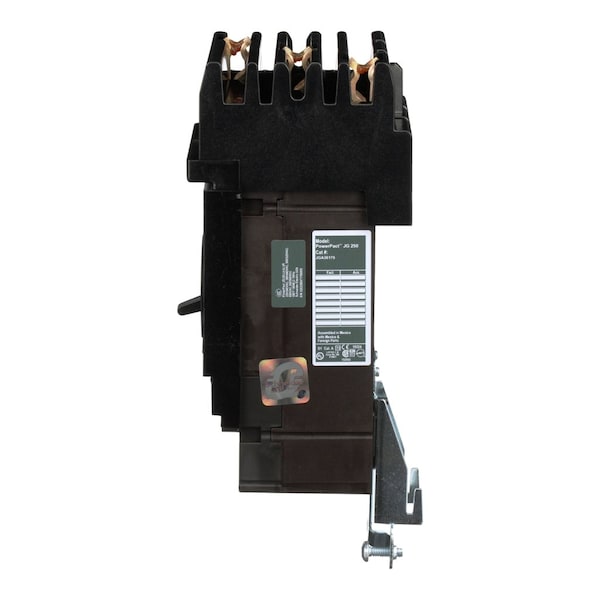

Molded Case Circuit Breaker, JGA Series, 175A, 3 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | JGA |
| Amps | 175A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | I-Line |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Instantaneous |
| Terminal Connection | Lug, I-Line |
| Phase Connection | ABC |
| Frame Size | 250A, JG |
| Width | 4.12 in |
| Depth | 5 in |
| Height | 7.52 in |
| DC Voltage Rating | 250/500V DC |
| Max. Wire Size | 4 AWG |
| High Amp Trip Setting | 1,750 A |
| Low Amp Trip Setting | 875 A |
| For Use With | I Line Panelboards |
| Standards | CCC, CE, CSA, IEC, NMX, UL Listed |
| Min. Wire Size | 4 AWG |
| Features | Mercury Free; PVC Free |
| Interrupt Rating | 65 kA at 220/240V AC, 35 kA at 380/440/415/480V AC, 18 kA at 500/525/600V AC, 20 kA at 250/500V DC |
| Application | HACR rated Applications; Distribution |
| Mounting | Plug In Panelboard |
| Package Quantity | 1 |
