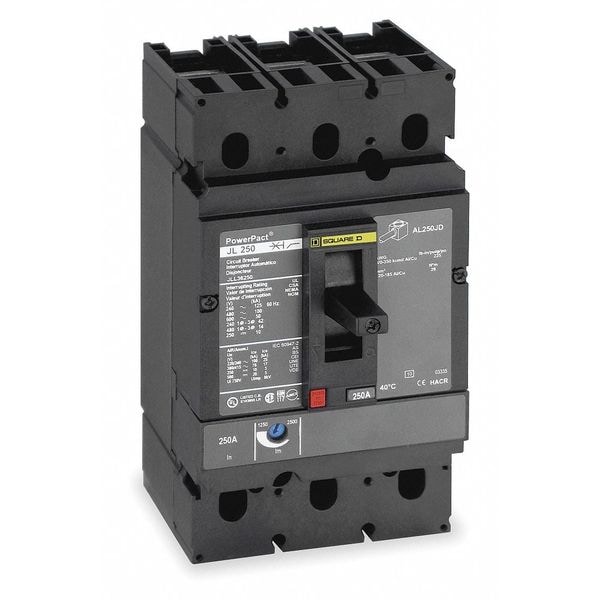

Molded Case Circuit Breaker, JGL Series, 250A, 3 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | JGL |
| Amps | 250A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Shunt Trip |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 250A, JG |
| Width | 4.12 in |
| Depth | 5 in |
| Height | 7.52 in |
| DC Voltage Rating | 250/500V DC |
| For Use With | I Line Panelboards |
| Max. Wire Size | 350 MCM |
| Min. Wire Size | 3 AWG |
| Standards | CCC, CE, CSA, IEC, UL Listed |
| High Amp Trip Setting | 3,125 A |
| Low Amp Trip Setting | 3,125 A |
| Features | Mercury Free; PVC Free |
| Poles Description | 3P |
| AWG Gauge | x AWG 3/0 to 350 kcmil ( aluminium/copper ) |
| Product Certifications | CSA, IEC, CCC, CE, NMX |
| Rated Operational Voltage | 600 V AC; 250 V DC |
| Terminal Identifier | AL250JD |
| Short-Circuit Withstand | 65 kA 240 V UL 489; 35 kA 480 V UL 489; 18 kA 600 V UL 489 |
| Magnetic Tripping Current | 3,125 A |
| Breaking Capacity Code | G |
| Tightening Torque | 230.12 lbf.in (26 N.m) 0.15 to 0.29 in² (95 to 185 mm²) (AWG 3/0 to 350 kcmil) |
| Mounting | Free Standing |
| Package Quantity | 1 |
