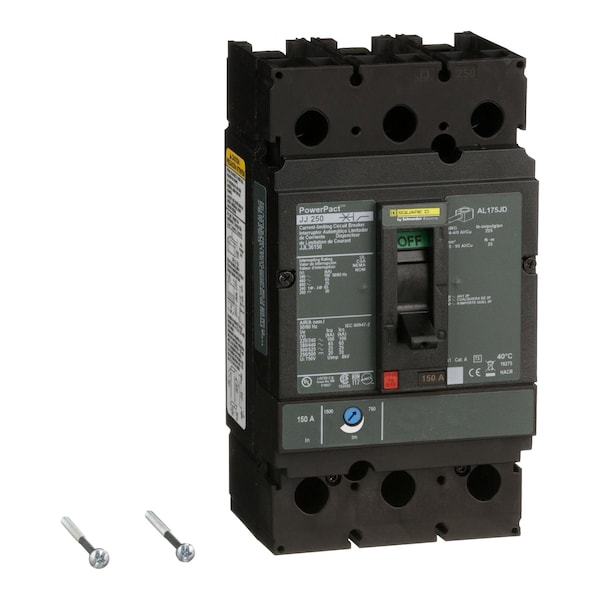

Molded Case Circuit Breaker, JJL Series, 150A, 3 Pole, 600V AC, 100kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | JJL |
| Amps | 150A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 100kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Adjustable |
| Terminal Connection | Line, Load Lug |
| Phase Connection | BA |
| Frame Size | 250A, JJ |
| Width | 4.12 in |
| Depth | 5 in |
| Height | 7.52 in |
| DC Voltage Rating | 250V DC |
| Max. Wire Size | 4/0 AWG (Cu/Al) |
| High Amp Trip Setting | 1,750 A |
| Interrupt Rating | 65 kA at 220/240/480V AC, 35 kA at 380/440/415V AC, 18 kA at 500/525V AC, 20 kA at 250/500V DC, 100 kA at 240V AC, 25 kA at 600V AC |
| Standards | UL, CSA, NEMA, NOM, CE |
| Min. Wire Size | 4 AWG (Cu/Al) |
| Features | Mercury Free; PVC Free |
| Application | HACR rated Applications; Distribution |
| Package Quantity | 1 |
