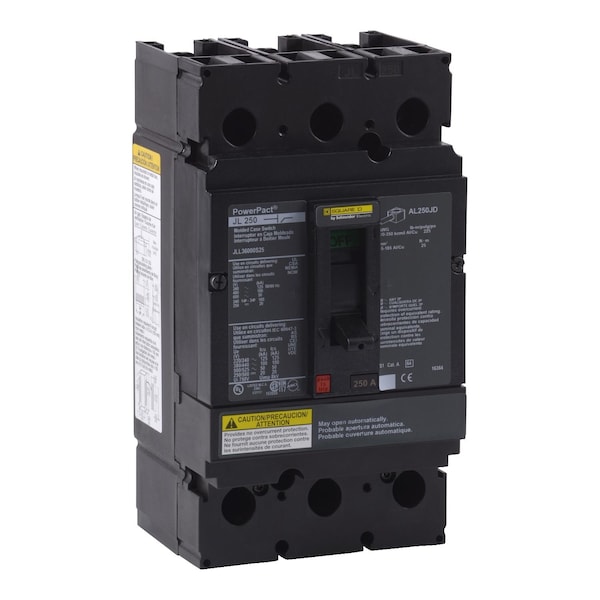

Molded Case Circuit Breaker, JLL Series, 250A, 3 Pole, 600V AC, 125kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | JLL |
| Amps | 250A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 125kA at 240V AC |
| Trip Type | Magnetic |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 250A, JL |
| Width | 2.74 in |
| Depth | 5 in |
| Height | 7.52 in |
| DC Voltage Rating | 250/500V DC |
| Min. Wire Size | 3/0 AWG (Cu/Al) |
| Max. Wire Size | 350 kcmil (Cu/Al) |
| High Amp Trip Setting | 3,125 A |
| Features | Mercury Free; PVC Free |
| Standards | CE, IEC, CCC, CSA, NMX, UL Listed |
| Package Quantity | 1 |
