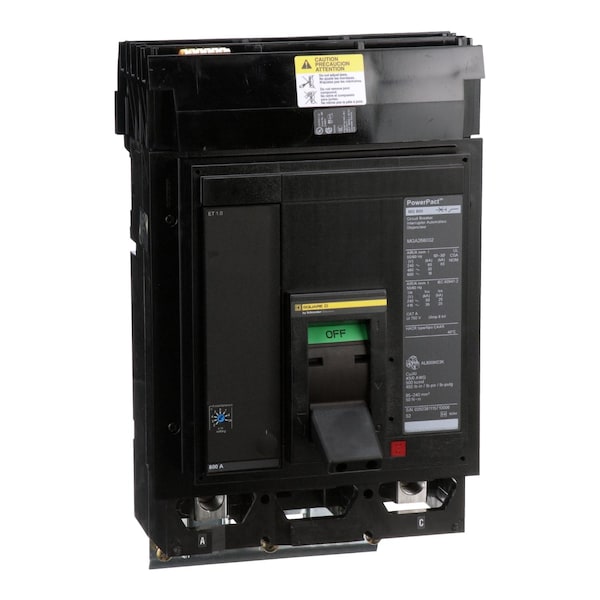

Molded Case Circuit Breaker, MGA Series, 800A, 2 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | MGA |
| Amps | 800A |
| Number of Poles | 2 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Operating Handle |
| Circuit Breaker Mounting Style | I-Line |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Electronic |
| Terminal Connection | Lug, I-Line |
| Phase Connection | AC |
| Frame Size | 800A, M |
| Width | 8.27 in |
| Depth | 8.05 in |
| Height | 12.86 in |
| DC Voltage Rating | Not Rated |
| Standards | UL, CSA, NEMA, NOM, CE |
| Features | Mercury Free; PVC Free |
| Color | Black |
| Max. Wire Size | (3) 500 kcmil (Cu/Al) |
| Min. Wire Size | (3) 3/0 AWG (Cu/Al) |
| High Amp Trip Setting | 1600 to 8000 A |
| Interrupt Rating | 25 kA at 240V AC, 20 kA at 380/415V AC, 65 kA at 240V AC, 35 kA at 380/415/480V AC, 18 kA at 600V AC, 50 kA at 240V AC |
| Application | HACR rated Applications; Distribution |
| Device Application | Distribution |
| AWG Gauge | 3 x AWG 3/0 to 3 x 500 kcmil aluminium/copper |
| Product Certifications | CSA, UL, NOM |
| Breaking Capacity | AIR 65 kA 240 V AC 50/60 Hz UL 489; AIR 35 kA 480 V AC 50/60 Hz UL 489; AIR 18 kA 600 V AC 50/60 Hz UL 489; Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2; Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Tightening Torque | 442.54 lbf.in (50 N.m) 0.15 to 0.37 in² (95 to 240 mm²) (3 x AWG 3/0 to 3 x 500 kcmil) |
| Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Mounting Height | 9 in |
| Ambient Air Temperature For Storage | -58 to 185°F |
| Suitability For Isolation | Yes IEC 60947-2 |
| Number Of Slots | 2 |
| Power Wire Stripping Length | 0.98 in |
| Continuous Current Rating | 0.8 |
| Utilisation Category | Category A |
| Breaking Capacity Code | G |
| Product Name | PowerPact M |
| IP Degree Of Protection | IP40 |
| Circuit Breaker Application | HACR rated |
| Rated Service Breaking Capacity | 25 kA 240 V AC 50/60 Hz IEC 60947-2; 20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Long Time Pick-Up Adjustment Range | 300 to 800 A |
| Rated Operational Voltage | 600 V AC 50/60 Hz UL 489 |
| Quality Labels | CE |
| Operating Altitude | Less than 6561.68 ft (2000 m) without derating; 13123.36 ft (4000 m) with derating |
| Local Signalling | 1 trip indicator green) |
| Trip Unit Name | ET 1.0 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Operation | -13 to 158°F (-25 to 70°C) |
| Terminal Identifier | AL800M23K |
| Network Frequency | 50/60 Hz |
| Rated Insulation Voltage | 750 V IEC 60947-2 |
| Package Quantity | 1 |
