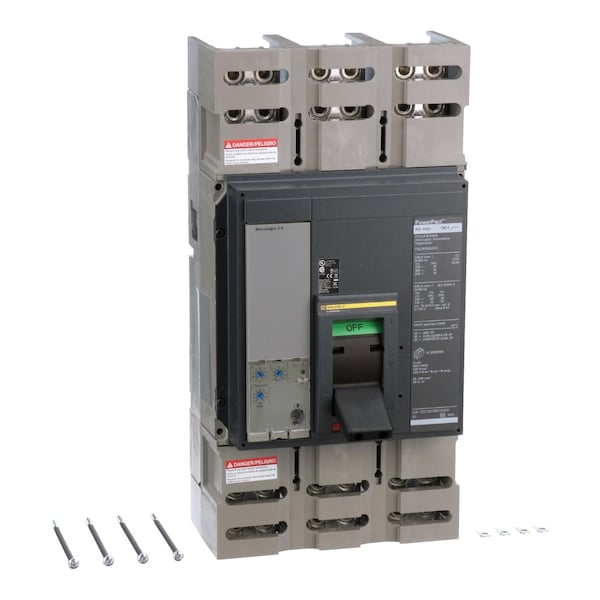

Molded Case Circuit Breaker, PGL Series, 1,000A, 3 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | PGL |
| Amps | 1,000A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Micrologic 3.0 Trip |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Electronic |
| Terminal Connection | Line, Load Lug |
| Frame Size | 1200A, P |
| Width | 8.27 in |
| Depth | 8.05 in |
| Height | 16.16 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | (4) 3/0 AWG (Cu/Al) |
| Standards | UL, CSA, NEMA, NOM, CE |
| Features | Mercury Free; PVC Free |
| Application | HACR rated Applications; Distribution |
| Max. Wire Size | 500 kcmil (Cu/Al) |
| Interrupt Rating | 25 kA at 240V AC, 20 kA at 380/415V AC, 65 kA at 240V AC, 35 kA at 380/415/480V AC, 18 kA at 600V AC, 50 kA at 240V AC |
| Package Quantity | 1 |
