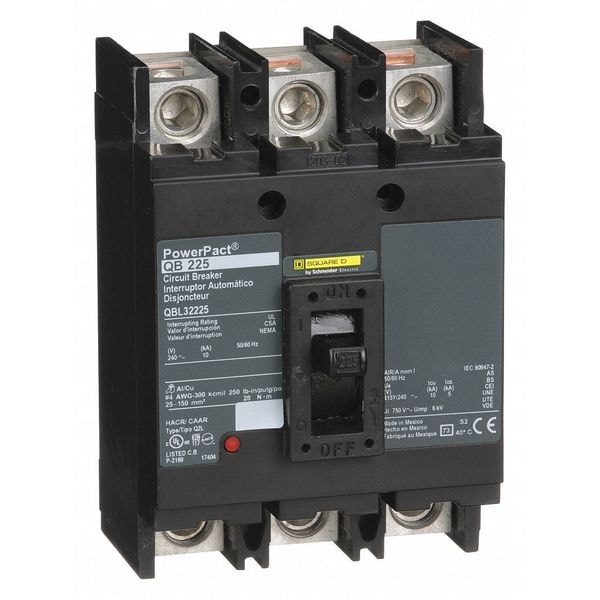

Molded Case Circuit Breaker, QBL Series, 225A, 3 Pole, 240V AC, 10kA at 240V AC
| CAD Available | Yes |
|---|---|
| Item | Molded Case Circuit Breaker |
| Series | QBL |
| Amps | 225A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 10kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 250A, QB |
| Width | 4-1/2 in |
| Depth | 3.93 in |
| Height | 6.47 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 4 AWG |
| Low Amp Trip Setting | 1,200 A |
| Max. Wire Size | 300 MCM |
| Standards | CSA, IEC, UL Listed |
| High Amp Trip Setting | 2,400 A |
| Application | HACR rated Applications; Distribution |
| Features | Mercury Free; PVC Free |
| Interrupt Rating | 10 kA at 120/208/240V AC |
| Mounting | Free Standing |
| Package Quantity | 1 |
