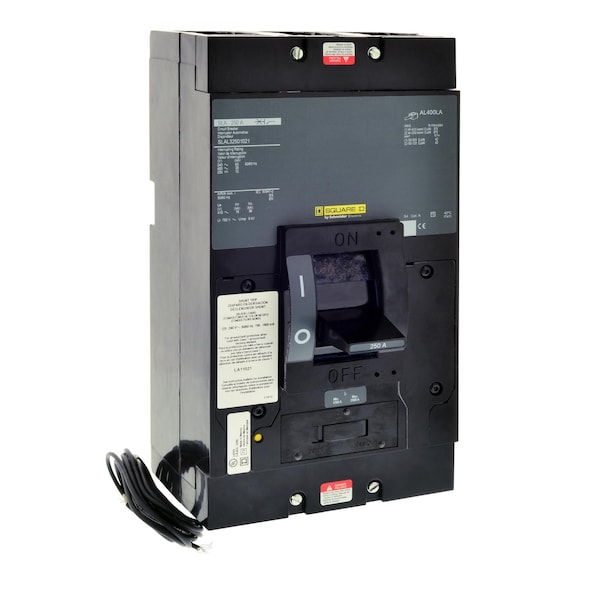

Molded Case Circuit Breaker, SLA Series, 250A, 3 Pole, 480V AC, 36kA at 240/415V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | SLA |
| Amps | 250A |
| Number of Poles | 3 |
| AC Voltage Rating | 480V AC |
| Circuit Breaker Type | Shunt Trip |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 36kA at 240/415V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Line, Load Lug |
| Frame Size | LAL |
| Width | 12-1/2 in |
| Depth | 19.9 in |
| Height | 12.6 in |
| DC Voltage Rating | 250V DC |
| High Amp Trip Setting | 2,500 A |
| Standards | IEC, UL Listed, CSA |
| Features | Mercury Free; PVC Free |
| Package Quantity | 1 |
