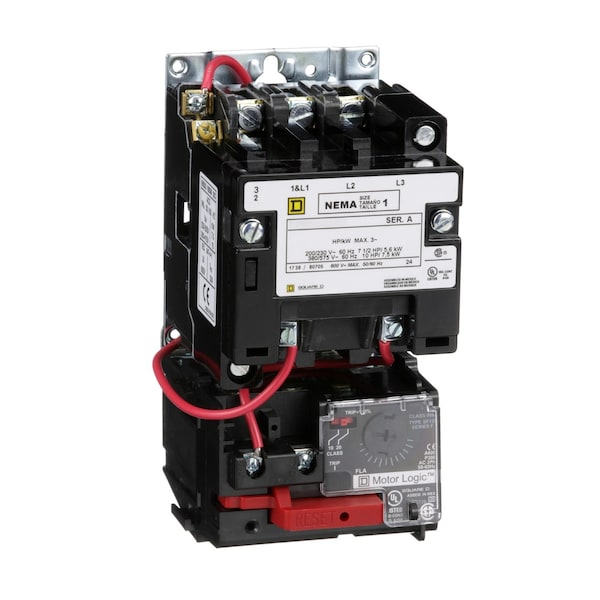

Arrancador no reversible tamaño 1, 3 polos, Mo, sin clasificación NEMA, 110/120V CA, 3 polos.
| Item | Non-Reversing Starter Size 1,3-Pole,Mo |
|---|---|
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | Not Rated |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Non Reversing |
| Amps AC | 27 A |
| NEMA Size | 1 |
| Number of Poles | 3 |
| Hz | 50/60 Hz |
| Height | 172 mm |
| Features | Pvc Free |
| Width | 89 mm |
| Depth | 107 mm |
| Enclosure Type | Open |
| Standards | UL Listed; CSA; NEMA |
| Operating Voltage | 600V AC |
| Product or Component Type | motor starter |
| [Ue] Rated Operational Voltage | 600 V AC |
| Phase | 3 phase |
| Rated Power In Hp | 7.5 HP 200 V AC, 7.5 HP 230 V AC, 10 HP 460 V AC, 10 HP 575 V AC |
| Control Type | No control units |
| Electrical Connection | Screw Clamp Terminals |
| Control Circuit | Separate control circuit |
| Auxiliary Contact Composition | without |
| Local Signalling | without pilot light |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Nema Degree of Protection | not rated (open device) |
| Thermal Overload Type | solid state Motor Logic class 10/20 |
| Pvc Free | Yes |
| Range of Product | S |
| Poles Description | 3P |
| Package Quantity | 1 |
