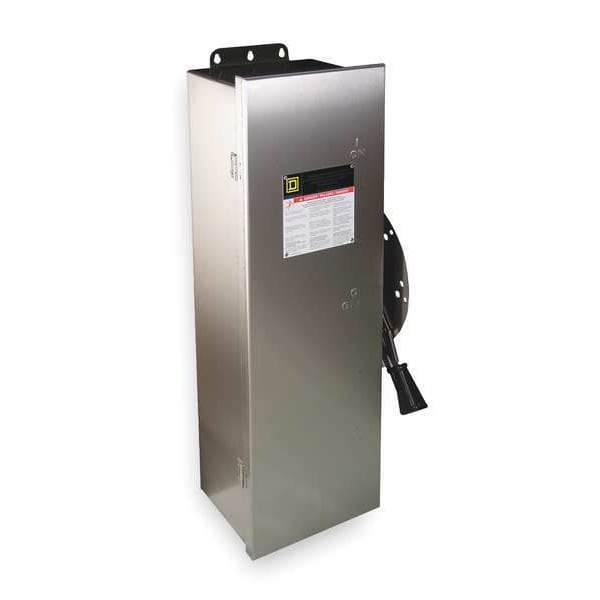

Interruptor de seguridad no fusible, uso pesado, 600V CA, 3PST, 600 A, NEMA 12, 3, 3R, 4, 4X, 5.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 400 HP @ 600 V AC |
| NEMA Enclosure Type | 3R, 12, 4X, 4, 3, 5 |
| IP Rating | Not Rated |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 600 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | 304 Stainless Steel |
| Fusible / Nonfusible | Nonfusible |
| Depth | 12.1 in |
| Width | 26 in |
| Standards | UL listed |
| Height | 50 in |
| Neutral Assembly Included | No |
| Features | Mercury Free, PVC Free |
| Weight | 70.3 kg |
| Electrical Connection | Lugs |
| Mounting | Surface |
| Gauge/Conductor | 3/0 AWG to 500 kcmil |
| Mounting Style | Surface Mount |
| Maximum Enclosure Depth | 27.62 in |
| Horsepower @ 240V AC | 200 HP |
| Horsepower @ 480V AC | 400 HP |
| Environment | Indoor, Outdoor |
| Horsepower @ 600V AC | 500 HP |
| For Fuse Class | Not Applicable |
| Minimum Enclosure Depth | 12.18 in |
| Maximum Mounting Depth | 19.36 in |
| Housing Material | Stainless Steel |
| NEMA Enclosure Rating | 4, 4X, 5 |
| Minimum Mounting Depth | 8 in |
| Current Rating | 600 A |
| Motor Power HP | 200 hp at 240 V AC 50-60 Hz for 3 phase motors; 400 hp at 480 V AC 50-60 Hz for 3 phase motors; 500 hp at 600 V AC 50-60 Hz for 3 phase motors; 50 hp at 250 V DC; 50 hp at 600 V DC |
| Wire Size | AWG 3/0 to 500 kcmil copper or aluminium |
| Factory Installed Neutral | None |
| Duty Rating | Heavy duty |
| Tightening Torque | 375 lbf.in (42.37 N.m) (AWG 3/0 to 500 kcmil) |
| Disconnect Type | Non-fusible disconnect |
| Voltage Rating | 600 V AC/DC |
| Certifications | UL listed file E2875 |
| Enclosure Rating | NEMA 4/4X/5 stainless steel 304 |
| Wiring Configuration | 3-wire |
| Device Application | Heavy application |
| Package Quantity | 1 |
