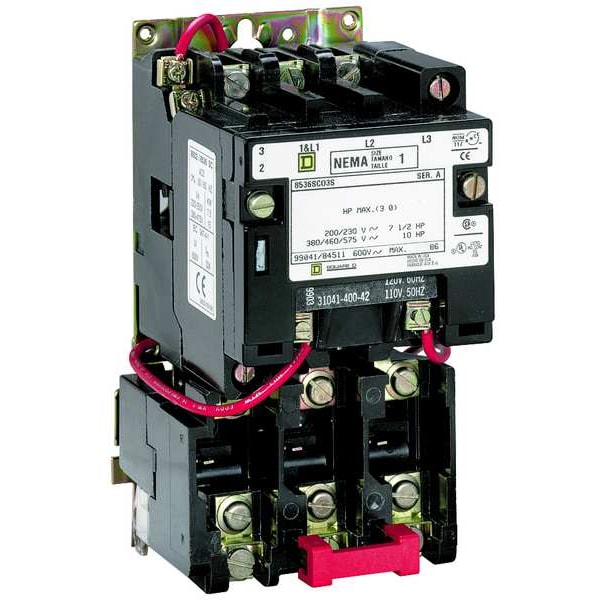

Arrancador magnético no reversor, sin gabinete de clasificación NEMA, 120V AC, 2 polos.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | Not Applicable |
| Starter Type | No Enclosure |
| Action | Nonreversing |
| Amps AC | 9 A |
| NEMA Size | 0 |
| Number of Poles | 2 |
| HP @ 1 Phase - 120V | 1/3 hp |
| HP @ 1 Phase - 230V | 1 hp |
| Width | 3.22 in |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Thermal Unit Code | B |
| Includes | Melting Alloy Thermal Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Height | 4.34 in |
| Depth | 4.22 in |
| Features | Pvc Free |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Coil Voltage | 120V AC |
| NEMA Enclosure Rating | No Enclosure |
| Number of Auxillary Contacts | 0 |
| Minimum Overload Relay Current Setting | Not Applicable |
| Current AC | 9 A |
| Series | 8536 |
| Includes Pilot Light | No |
| Overall Depth | 4.22 in |
| Starter Style | NEMA |
| Phase | Single |
| Includes Auxiliary Contacts | No |
| Horsepower @ Single Phase - 120V AC | 0.3333 HP |
| Frequency | 50/60 Hz |
| Overall Width | 3-1/2 in |
| Reversing Capability | Non-Reversing |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Operator | None |
| Maximum Voltage Rating | 600 V AC |
| Operator Function | Not Applicable |
| Auxiliary Contact Module Capacity | 4 |
| Overall Height | 6.77 in |
| Overload Protection Type | Thermal |
| Terminal Connection Type | Screw Clamp Terminals |
| Maximum Overload Relay Current Setting | Not Applicable |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Certifications | UL Listed, CSA, NEMA |
| Horsepower Rating | 0.33 HP 115 V AC; 1 HP 230 V AC |
| Pilot Light | Without pilot light |
| Control Circuit Type | Separate control circuit |
| Control Units | No control units |
| Rated Current | 9 A |
| Type Of Overload | Melting alloy 1 |
| Auxiliary Contacts | Without |
| Package Quantity | 1 |
