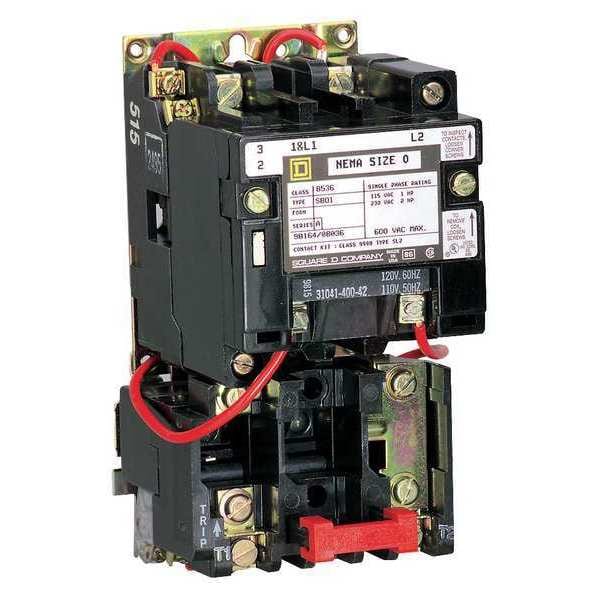

Arrancador magnético no reversible, sin recinto clasificación NEMA, 120V CA, 2 polos.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | No Enclosure |
| Action | Nonreversing |
| Amps AC | 18 A |
| NEMA Size | 0 |
| Number of Poles | 2 |
| HP @ 1 Phase - 120V | 1 hp |
| Width | 4.53 in |
| Depth | 4.22 in |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Height | 6.77 in |
| Thermal Unit Code | B |
| HP @ 1 Phase - 230V | 2 hp |
| Enclosure Type | Open |
| Features | Pvc Free |
| Operating Voltage | 600V AC |
| Operator | None |
| Minimum Overload Relay Current Setting | Not Applicable |
| Overall Depth | 4.22 in |
| Current AC | 18 A |
| Includes Pilot Light | No |
| Starter Style | NEMA |
| Overall Width | 3-1/2 in |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 6.77 in |
| Overload Protection Type | Thermal |
| Maximum Voltage Rating | 600 V AC |
| Operator Function | Not Applicable |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Clamp Terminals |
| Includes Auxiliary Contacts | No |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Coil Voltage | 110/120V AC |
| Number of Auxillary Contacts | 0 |
| Maximum Overload Relay Current Setting | Not Applicable |
| Phase | Single |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Reversing Capability | Non-Reversing |
| Package Quantity | 1 |
