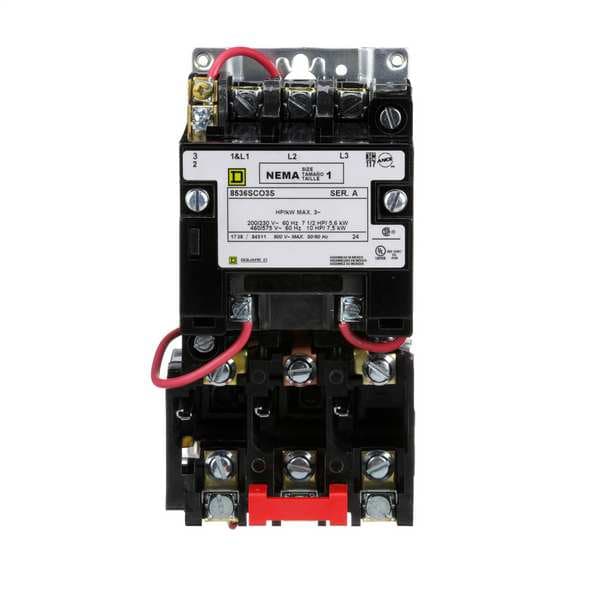

Arrancador de motor magnético no reversor, sin caja clasificada por NEMA, 24V de corriente alterna, 3 polos.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 24V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 7.5 HP |
| Starter Type | No Enclosure |
| Action | Nonreversing |
| Amps AC | 27 A |
| NEMA Size | 1 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 HP |
| Hz | 60 |
| Depth | 4.22 in |
| Standards | CSA, UL Listed |
| HP @ 3 Phase - 208V | 7.5 HP |
| Height | 6.77 in |
| Width | 4.53 in |
| HP @ 3 Phase - 575V | 10 hp |
| Enclosure Type | Open |
| Thermal Unit Code | B |
| Features | Pvc Free |
| Operating Voltage | 600V AC |
| NEMA Enclosure Rating | No Enclosure |
| Number of Auxillary Contacts | 0 |
| Includes Pilot Light | No |
| Maximum Voltage Rating | 600 V AC |
| Operator | None |
| Overall Height | 6.77 in |
| Current AC | 27 A |
| Maximum Overload Relay Current Setting | Not Applicable |
| Includes Auxiliary Contacts | No |
| Starter Style | NEMA |
| Phase | Three |
| Operator Function | Not Applicable |
| Overall Depth | 4.22 in |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Coil Voltage | 24V AC |
| Frequency | 60 Hz |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Overall Width | 3-1/2 in |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Minimum Overload Relay Current Setting | Not Applicable |
| Terminal Connection Type | Screw Clamp Terminals |
| Reversing Capability | Non-Reversing |
| Package Quantity | 1 |
