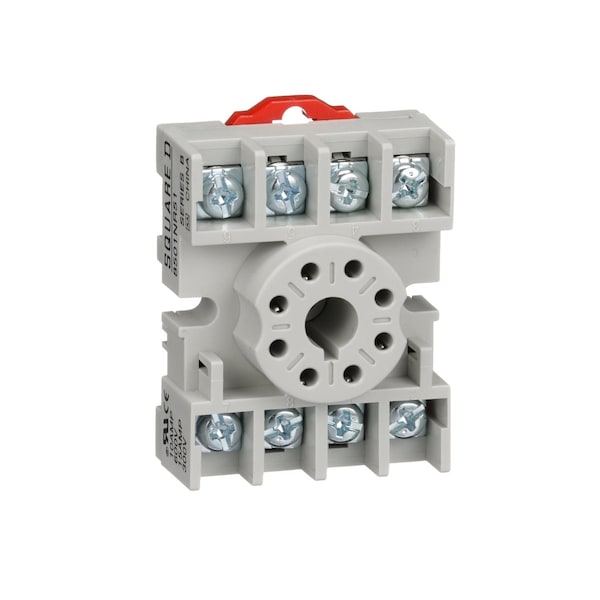

Relé enchufable, Tipo N, base de relé, 8 pines tubulares, de un solo nivel, para relés 8510KP y temporizadores 9050JCK, empaquetado a granel.
| Width | 40 mm |
|---|---|
| Item | Relay Socket,8 pin,tubular,single tie |
| Depth | 24.6 mm |
| Electrical Connection | screw clamp terminals |
| Height | 54 mm |
| Mounting Support | DIN rail || panel |
| Line Rated Current | 15 A 300 V AC || 5 A 600 V AC |
| Product Certifications | UL Recognized || CSA || CE |
| Pin Number | 8 |
| Shape Of Pin | tubular |
| Product Or Component Type | Relay Socket |
| Package Quantity | 1 |
