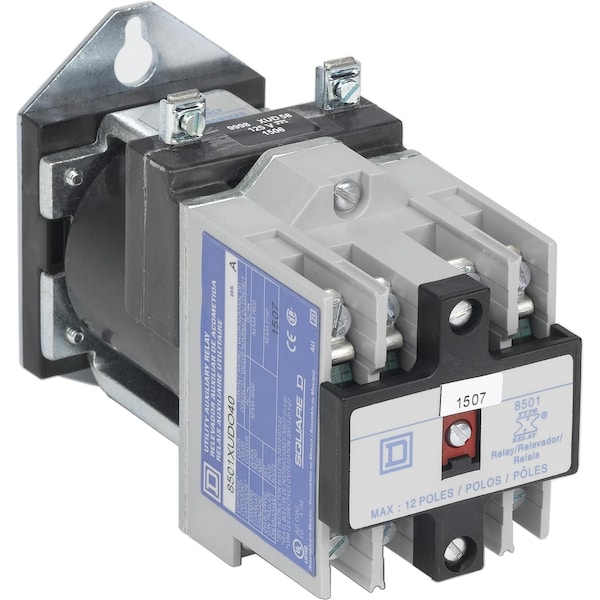

Relé, Harmony 8501X, utilitario, bobina, 10A resistivos a 600V AC, 125V DC, 250V DC Voltage, 4NO.
| Coil Volts | 250VDC |
|---|---|
| Item | Relay 250Vdc 5Amp Nema +Options |
| Height | 3.56 in |
| Width | 2.23 in |
| Depth | 5.17 in |
| Poles Description | 4 P |
| Electrical Connection | Screw Clamp Terminals |
| Contacts Type And Composition | standard contact cartridges |
| Line Rated Current | 10 A AC || 5 A DC |
| Ambient Air Temperature For Operation | -40-160°F |
| Operating Time | 37 ms - pick-up || 21 ms - drop-out |
| Product Certifications | UL Listed || CE || CSA |
| Mounting Support | panel |
| Product Or Component Type | relay |
| Maximum Switching Voltage | 250 V DC |
| Relay Type | utility |
| [Uc] Control Circuit Voltage | 125 V DC |
| Range of Product | 8501X |
| Package Quantity | 1 |
