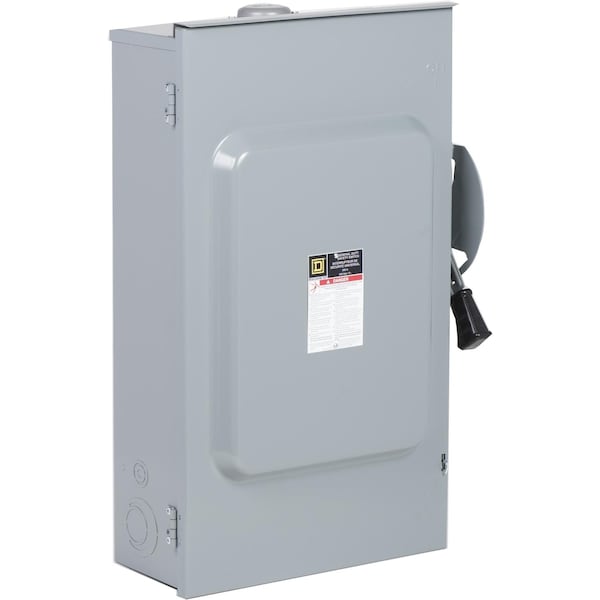

Interruptor de seguridad, deber general, fusible, 200A, 120/240VAC, 2 polos, 60HP, neutro sólido, NEMA 3R con provisión de montaje de perno.
| Item | 200A 2P Fusible Type 3R Gdss |
|---|---|
| Depth | 8-1/2 in |
| Width | 19 in |
| Height | 29-1/4 in |
| Number of Poles | 2 |
| Electrical Connection | Lugs |
| Product Or Component Type | Single Throw Safety Switch |
| Short-Circuit Current | 100 kA maximum cartridge |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Series Name | general duty |
| Device Composition | neutral (factory installed) |
| Disconnector Device Type | fusible disconnect |
| Tightening Torque | 275 to 275 lbf.in |
| Awg Gauge | AWG 6 to 250 kcmil copper or aluminium |
| Product Certifications | CSA |
| Device Mounting | surface |
| Motor Power HP | 15 hp at 240 V AC 50-60 Hz for 1 phase motors; 25 hp at 240 V AC 50-60 Hz for 3 phase motors; 60 hp at 240 V AC 50-60 Hz for 3 phase motors |
| Pvc Free | Yes |
| Package Quantity | 1 |
