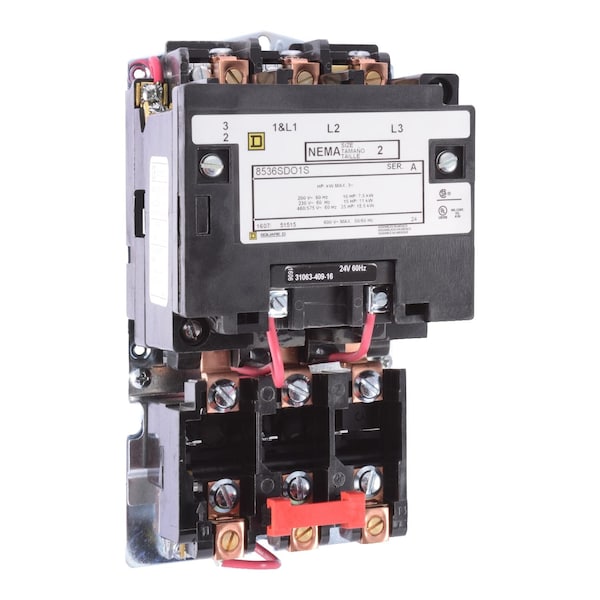

Arrancador 600Vac 45Amp Nema +Opciones, No calificado para clasificación NEMA, 110/120V AC, 4 polos.
| Item | Starter 600Vac 45Amp Nema +Options |
|---|---|
| Coil Volts | 110/120V AC |
| Enclosure NEMA Rating | Not Rated |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Non Reversing |
| Amps AC | 45 A |
| NEMA Size | 2 |
| Number of Poles | 4 |
| Standards | UL Listed; CSA; NEMA |
| Height | 198 mm |
| Depth | 125 mm |
| Hz | 50/60 Hz |
| Width | 143 mm |
| Features | Free of Mercury & Pvc |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Range of Product | S |
| Poles Description | 4P |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Pvc Free | Yes |
| [Ue] Rated Operational Voltage | 600 V AC |
| Thermal Overload Type | melting alloy 2 |
| Phase | 2 phases |
| Control Type | No control units |
| Local Signalling | without pilot light |
| Product or Component Type | motor starter |
| Nema Degree of Protection | not rated (open device) |
| Electrical Connection | Screw Clamp Terminals |
| Auxiliary Contact Composition | without |
| Control Circuit | Separate control circuit |
| Rated Power In Hp | 10 HP 200 V AC, 15 HP 230 V AC, 25 HP 460 V AC, 25 HP 575 V AC |
| Package Quantity | 1 |
