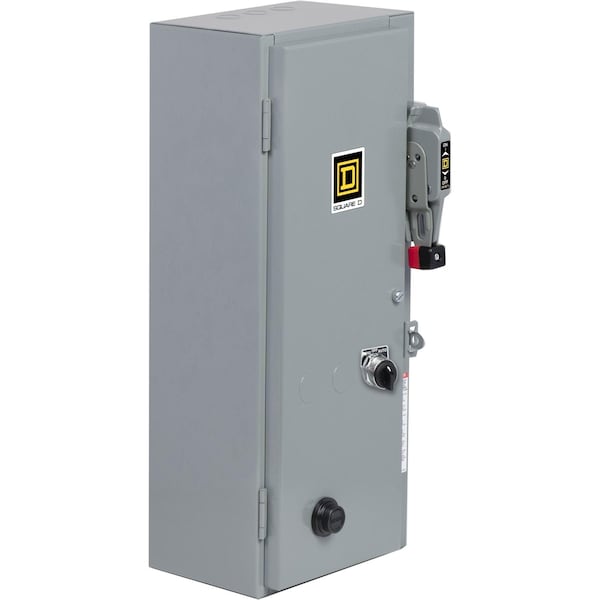

Controlador de motor inicial. Menos de 1000 VCA, clasificación NEMA 1, 120/480 VCA, 3 polos.
| Item | Starter Motor Control Less Than1000Vac |
|---|---|
| Type | S |
| Coil Volts | 120/480V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | Combination Non Reversing Starter |
| Number of Poles | 3 |
| Enclosure Type | Painted Steel Sheet |
| HP @ 3 Phase - 575V | 5 |
| Includes | 2 fuses Primary Circuit; 1 fuse Secondary Circuit |
| Hz | 60 Hz |
| Operating Voltage | 600V AC |
| Local Signalling | no indicator |
| Provided Equipment | 2 fuses primary circuit, 1 fuse secondary circuit |
| Auxiliary Contact Composition | without |
| Poles Description | 3P |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz secondary circuit, 480 V AC 60 Hz primary circuit |
| Maximum Horse Power Rating | 5-5 hp 460 V AC, 3 phase, 5-5 hp 575 V AC, 3 phase |
| Control Circuit | control circuit transformer |
| Disconnector Device Type | fusible disconnect switch H, 30 A |
| Thermal Overload Type | melting alloy 3 |
| Nema Size | 0 |
| Product or Component Type | Combination Starter |
| Motor Starter Type | non reversing |
| [Ue] Rated Operational Voltage | 600 V AC |
| Nema Degree of Protection | NEMA 1 painted sheet steel with external reset |
| Control Type | selector switch HAND-OFF-AUTO |
| Range of Product | S |
| Disconnect Type | disconnect switch |
| Horsepower Rating | 5 hp 460 V AC, 3 phase; 5 hp 575 V AC, 3 phase |
| Maximum Voltage Rating | 600 V AC |
| Control Circuit Type | Control circuit transformer |
| Control Circuit Voltage | 120 V AC 60 Hz secondary circuit; 480 V AC 60 Hz primary circuit |
| Control Units | Selector switch HAND-OFF-AUTO |
| Auxiliary Contacts | Without |
| Pilot Light | No indicator |
| Package Quantity | 1 |
