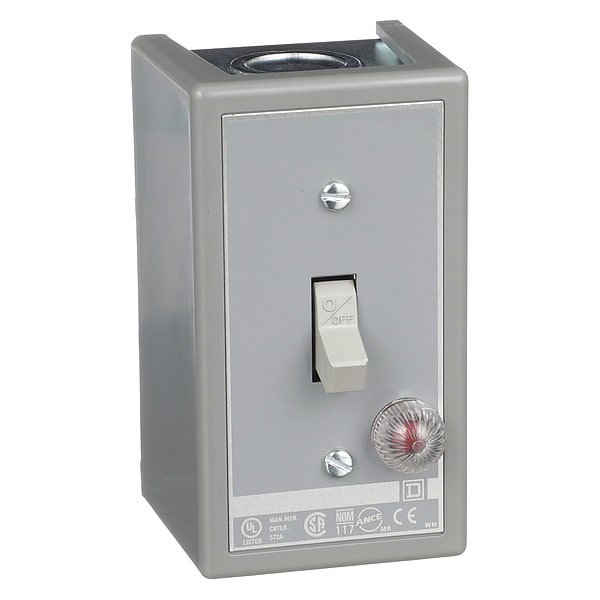

Interruptor, manual, 30A, 3 polos, 20 HP a 575 VCA, trifásico, operado con palanca, indicador rojo de 440/600 VCA, gabinete NEMA 1.
| Type | K |
|---|---|
| Depth | 2-3/4 in |
| Height | 4-1/4 in |
| Item | Manual Switch 600Vac K+Options |
| Width | 2.44 in |
| Local Signalling | red indicator, 440 to 600 V |
| Phase | 3 phase |
| Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Motor Starter Type | non reversing |
| Product Or Component Type | Single Unit Manual Switch |
| Product Certifications | UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05 |
| Poles Description | 3P |
| Electrical Connection | Screw Clamp Terminals |
| Control Type | toggle |
| [Ue] Rated Operational Voltage | 600 V AC || 230 V DC |
| Nema Degree Of Protection | NEMA 1 Plastic standard size |
| Line Rated Current | 30 A |
| Maximum Horse Power Rating | 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 15 hp 460 V AC || 20 hp 575 V AC |
| Awg Gauge | AWG 14 to AWG 10 copper |
| Maximum Voltage Rating | 600 V AC, 230 V DC |
| Horsepower Rating | 2 hp 115 V AC; 1 hp 90 V DC; 2 hp 115 V DC; 1.5 hp 230 V DC; 7.5 hp 230 V AC; 15 hp 460 V AC; 20 hp 575 V AC |
| Certifications | UL listed file E42243 CCN NLRV; CSA LR25490 class 3211 05 |
| Pvc Free | Yes |
| Package Quantity | 1 |
