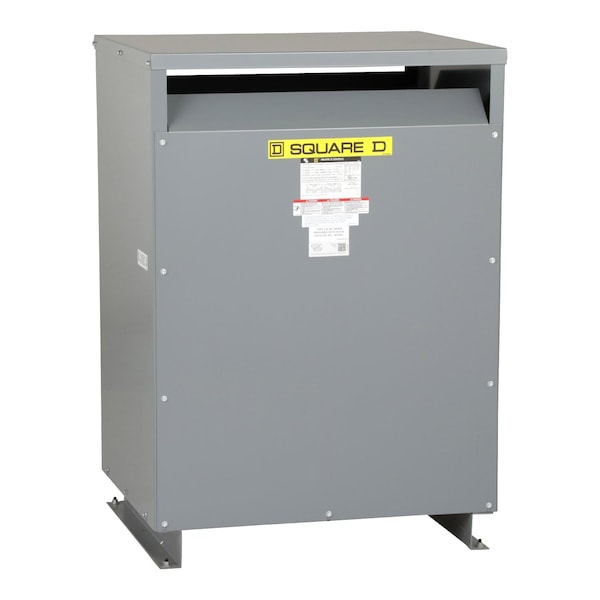

Transformador, tipo seco, DOE 2016, 167kVA, 1 fase, primario de 240x480V, secundario de 120/240V, 24D, aumento de 150C.
| Item | Xfmr Dry 1Ph 167Kva 240X480V120/240V |
|---|---|
| Material | Aluminium |
| Phase | 1 phase |
| Nema Degree Of Protection | NEMA 2 |
| Temperature Rise | 150°C |
| Insulation Temperature | 220°C |
| Secondary Voltage | 120/240 V |
| Product Or Component Type | Energy Efficient Transformer |
| Number Of Tap-Offs | 6 2.5 % 2+ 4- |
| Primary Voltage | 240 x 480 V |
| Rated Power In Va | 167 kVA |
| Box Number | 24D |
| Package Quantity | 1 |
