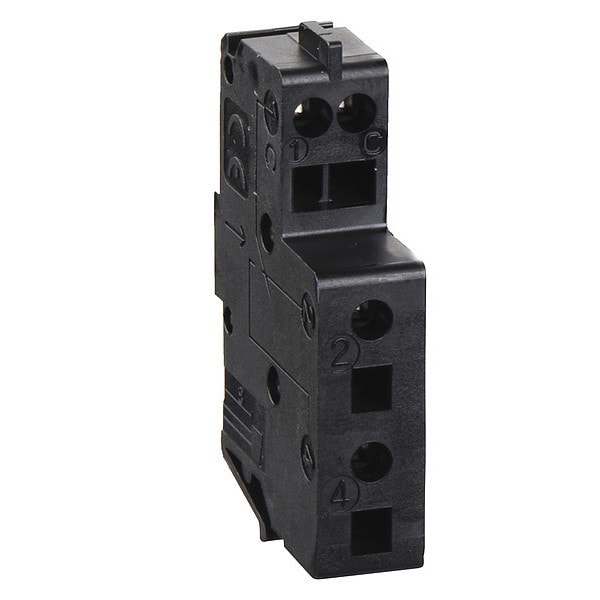

Alarma de Viaje y Interruptor Auxiliar, 48 a 480V AC/48 a 250V DC, 5 A, 0 Polos
| Item | Trip Alarm and Auxiliary Switch |
|---|---|
| Amps | 5 |
| Voltage | 48 to 480V AC/48 to 250V DC |
| Number of Poles | 0 |
| For Use With | PowerPact(R) B Circuit Breakers |
| Standards | CCC, EAC , IEC 60068-2-30, IEC/EN 60947-1 and -2 |
| Frame Type | 125A |
| Signal Contacts Composition | 1 NO/NC |
| Minimum Load | 2 mA 17 V DC |
| Device Application | breaker status monitoring |
| Device Short Name | SD || OF |
| Auxiliary Connection Terminal | spring |
| Local Signalling | for open/close ON/OFF indication || for relay trip indicator trip indicator |
| Auxiliary Contacts Type | standard |
| Product Or Component Type | contact |
| Range Compatibility | PowerPact (PowerPact B) || ComPact (ComPact NSXm) |
| Fault Type | overload || short-circuit |
| [Ith] Conventional Free Air Thermal Current | 0.208333333333333 |
| [Ie] Rated Operational Current | AC-12: 5 A at 24 V AC 50/60 Hz || AC-12: 5 A at 48 V AC 50/60 Hz || AC-12: 5 A at 110...127 V AC 50/60 Hz || AC-12: 5 A at 220/240 V AC 50/60 Hz || AC-12: 5 A at 380/440 V AC 50/60 Hz || AC-12: 5 A at 660/690 V AC 50/60 Hz || AC-15: 5 A at 24 V AC 50/60 Hz || AC-15: 5 A at 48 V AC 50/60 Hz || AC-15: 4 A at 110...127 V AC 50/60 Hz || AC-15: 3 A at 220/240 V AC 50/60 Hz || AC-15: 2.5 A at 380/440 V AC 50/60 Hz || AC-15: 0.1 A at 660/690 V AC 50/60 Hz || DC-12: 5 A at 24 V DC 50/60 Hz || DC-12: 2.5 A at 48 V DC 50/60 Hz || DC-12: 0.6 A at 110 V DC 50/60 Hz || DC-12: 0.3 A at 250 V DC || DC-13: 2.5 A at 24 V DC || DC-13: 1.2 A at 48 V DC || DC-13: 0.35 A at 110 V DC || DC-13: 0.05 A at 250 V DC || DC-14: 1 A at 24 V DC || DC-14: 0.2 A at 48 V DC || DC-14: 0.05 A at 110 V DC || DC-14: 0.03 A at 250 V DC |
| Wire Stripping Length | 8 mm front |
| Mounting Mode | clip-on |
| Package Quantity | 1 |
