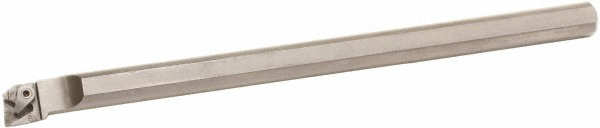

14.0000" OAL, Clamp, Uses TPG 32 Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.5310 |
|---|---|
| Toolholder Style | BCTJP |
| Tool Material | Steel |

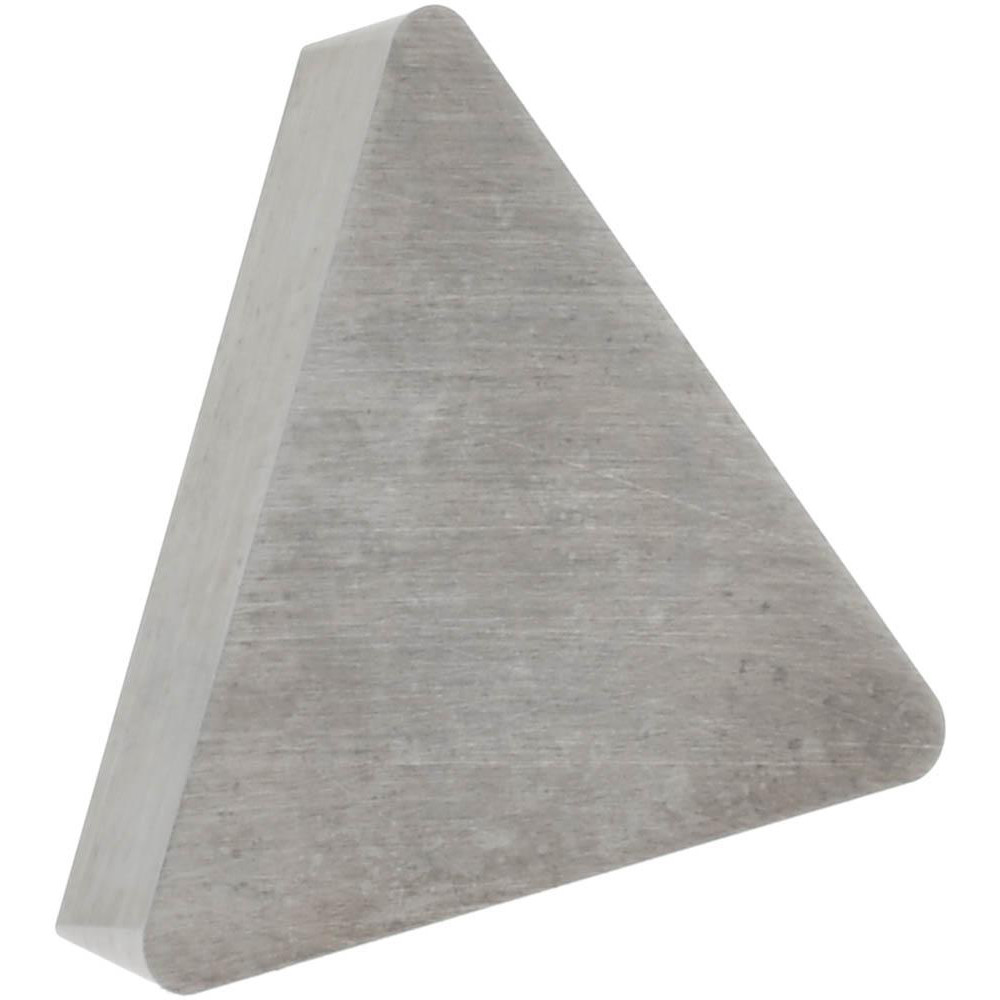

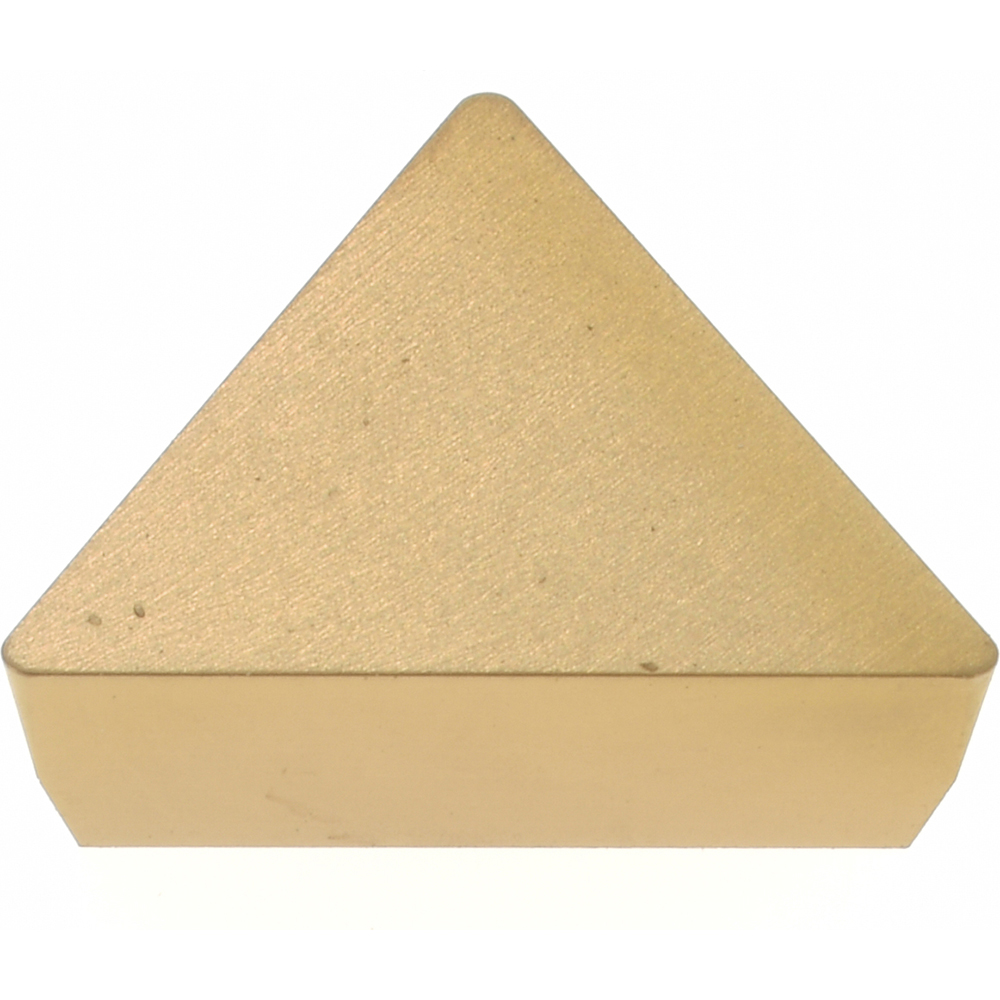

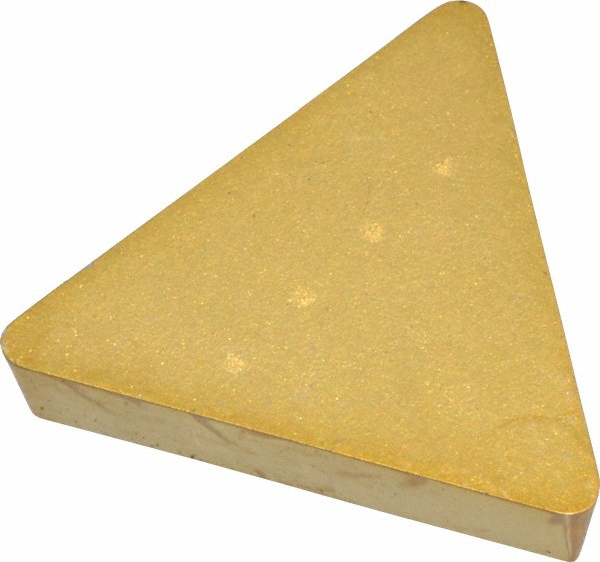

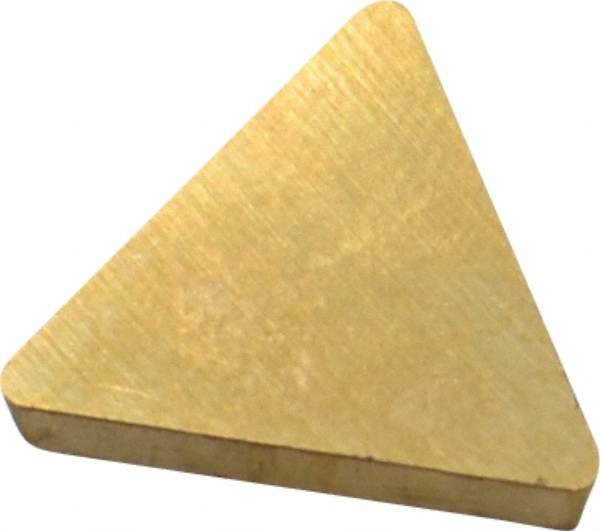

| Insert Compatibility | TPG 32 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Compatible Insert Size Code | 32 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Triangle |
| Rake | Positive |
| Rake Angle | 11.00 |
| Lead Angle | 3 |
| Series | BCTJP |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 71525026 |
