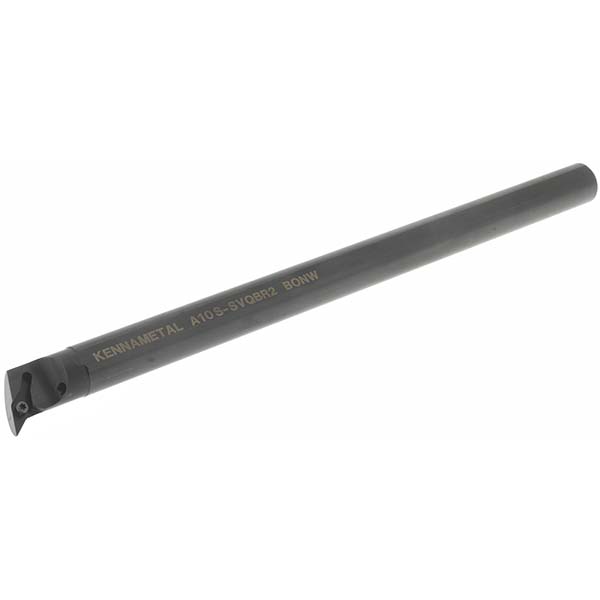

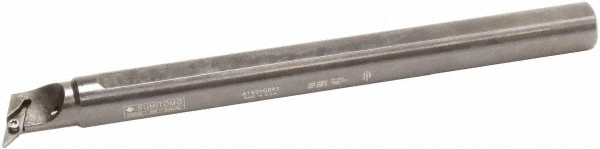

10.0000" OAL, Screw, Uses VBMT 221 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.8500 |
|---|---|
| Toolholder Style | A-SVQB |
| Tool Material | Steel |

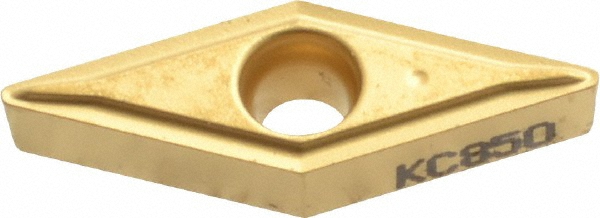

| Insert Compatibility | VBMT 221 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 10.0000 |
| Compatible Insert Size Code | 221 |

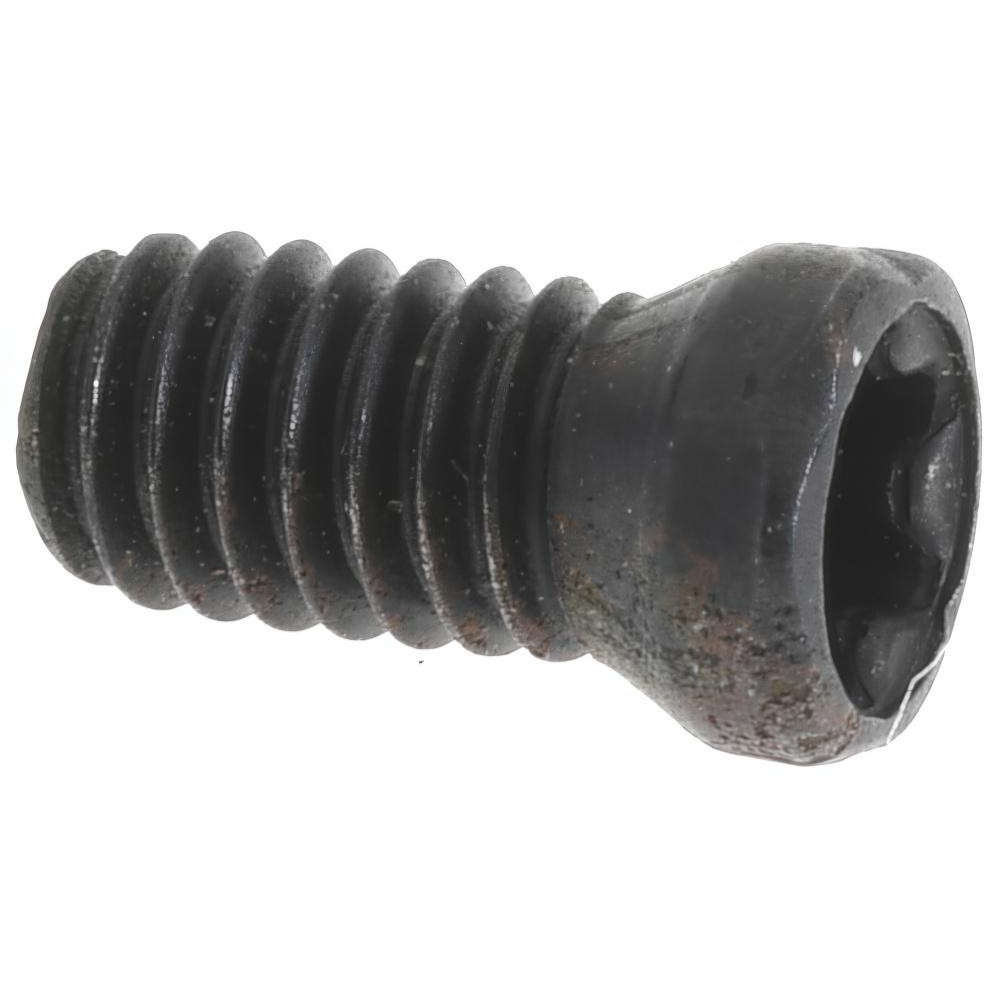

| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -6.00 |
| Lead Angle | 17 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Standards | ANSI-ISO |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 53946935 |
