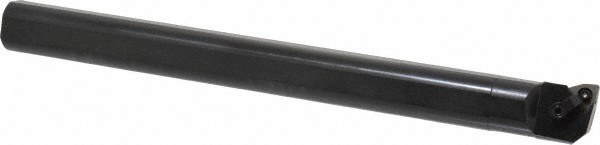

14.0000" OAL, Pin & Clamp, Uses WNMG 432 Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.5300 |
|---|---|
| Toolholder Style | BMWLN |
| Tool Material | Steel |

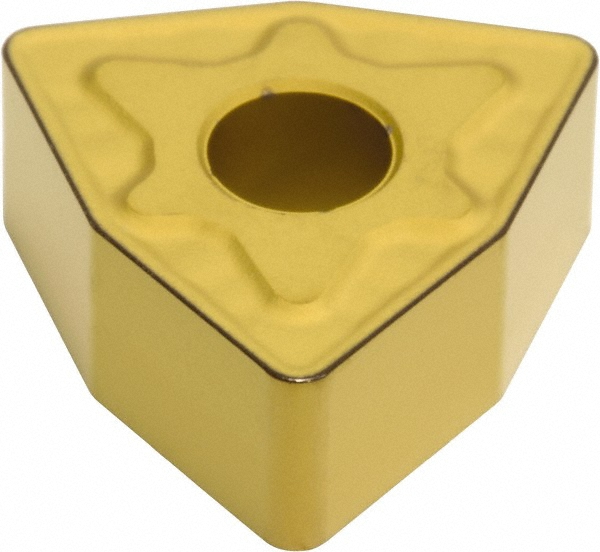

| Insert Compatibility | WNMG 432 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Compatible Insert Size Code | 432 |

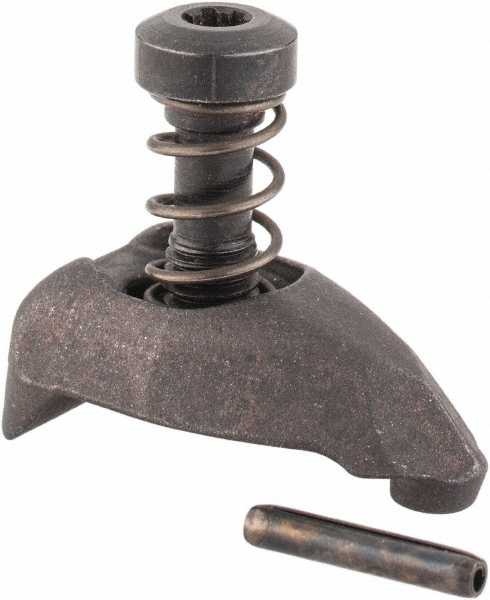

| Insert Holding Method | Pin & Clamp |
| Compatible Insert Shape | Trigon |
| Rake | Negative |
| Rake Angle | -14.00 |
| Lead Angle | 5 |
| Series | BMWLN |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 53946299 |
