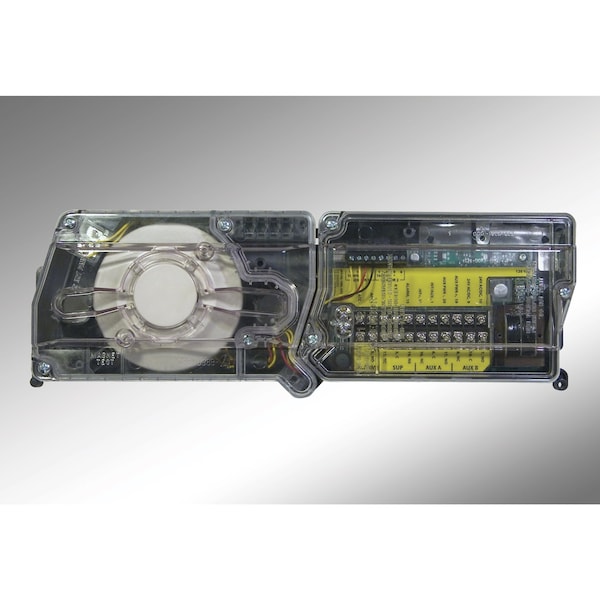

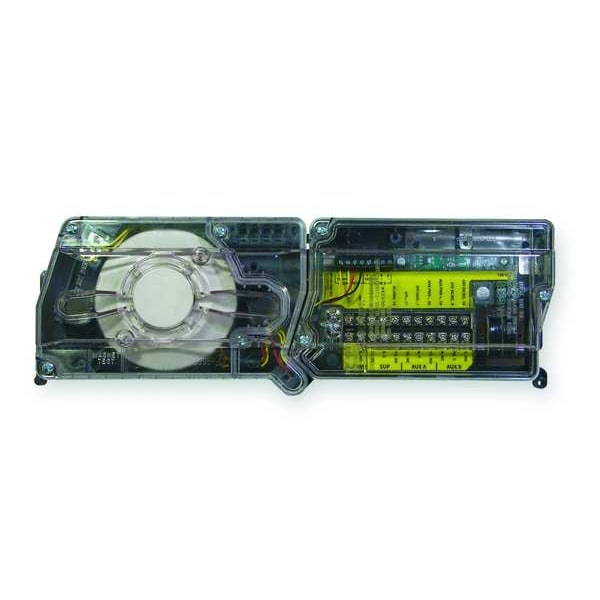

Duct Smoke Detector, Photoelectric, Universal, Air Velocity (FPM) 100 to 4000, 2 1/2 in Depth
| Item | Duct Smoke Detector |
|---|---|
| Power Source | Hardwired |
| Overall Width | 2-1/2 in |
| Overall Height | 5 in |
| Maximum Operating Temperature | 158 deg F |
| Standards | CSFM, FM, UL/ULC |
| Ambient Temp. Limits (F) | -4 to 158 deg F |
| Voltage | 24V DC/ 24V AC/ 120V AC |
| Alarm Aux. Contact @ 250V | 10 A |
| Alarm Aux. Contact @ 30VDC | 10 A |
| Standby State (mA) | Max 25mA @24V DC/ Max 55mA RMS @24V AC/ Max 20mA RMS @120V AC |
| Air Velocity (FPM) | 100 to 4,000 fpm |
| Alarm State (mA) | Max 60mA @24V DC/ Max 130mA RMS @24V AC/ Max 35mA RMS @120V AC |
| Type | Universal |
| Compatible With | Air Handling Systems |
| Depth | 2-1/2 in |
| Outside Diameter | Not Applicable |
| Products By Industry | Electrical |
| Minimum Operating Temperature | -4 deg F |
| Detects | Smoke |
| Humidity Operating Range | 0% to 95% RH |
| Shape | Rectangular |
| AC Contact Rating | 10 A @ 250 V |
| Voltage Rating | 120V AC, 24V AC/DC |
| DC Contact Rating | 10 A @ 30 V |
| Alert Type | Sound |
| Detector Type | Smoke Detector |
| Sensor Type | Photoelectric |
| Current Rating | 20 mA @120V AC, 25 mA @ 24V DC, 55 mA @ 24V AC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
