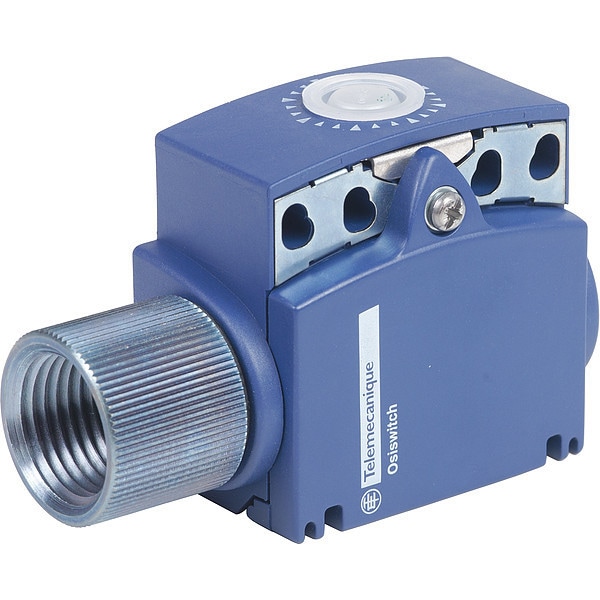

1NC/1NO cuerpo de interruptor de límite compacto Nema 1, 4, 12 IP 65.
| Item | Compact Limit Switch Body |
|---|---|
| Contact Form | 1NO/1NC |
| Depth | 30 mm |
| Height | 51-51 mm |
| AC Contact Rating | 1.5 A @ 240 V |
| Width | 58 mm |
| For Use With | XCKT Series Limit Switches |
| Electrical Connection | Screw Clamp Terminals |
| Operating Temp. | -13 to 158 deg F |
| NEMA Rating | 1, 12, 4 |
| IP Rating | IP65 |
| Standards | UL 508, CSA C22.2 No 14, EN 60947-5-1, IEC 60947-1 |
| Series | XCKT |
| Material | Plastic |
| Body Material | Plastic |
| DC Contact Rating | 0.1 A @ 250 V |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Compatible with Manufacturer Model Number | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| Operating Temperature - Minimum | -13 deg F |
| Mounting Hole Diameter | 0.17 in |
| Overall Height | 2.01 in |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 1, 12, 4 |
| Overall Depth | 1.18 in |
| Mounting Hole Horizontal Center to Center Distance | 21 mm, 41 mm |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Indicating Light | No Indicating Light Included |
| Overall Width | 2.28 in |
| Compatible with Series | XCKT |
| Manufacturer Warranty Length | 18 mo |
| Body Configuration | Non Plug-In |
| Number of Mounting Holes | 4 |
| Cable Entry | 2 entries tapped for 1/2" NPT adaptor 4-8 mm |
| Number Of Poles | 2 |
| Product Compatibility | XCKT |
| Series Name | Standard compact |
| Positive Opening | with |
| Minimum Actuation Speed | 0.01 m/sec |
| Associated Head | ZCE27 || ZCE65 || ZCE28 || ZCE63 || ZCEH2 || ZCE06 || ZCE14 || ZCE21 || ZCE11 || ZCE66 || ZCE64 || ZCE08 || ZCE05 || ZCE02 || ZCE10 || ZCE07 || ZCE24 || ZCE09 || ZCE62 || ZCE29 || ZCE67 || ZCE01 || ZCEH0 || ZCE13 |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Contacts Insulation Form | Zb |
| Design | compact |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Contacts Material | silver plated contacts |
| Device Short Name | ZCT |
| Ambient Air Temperature For Storage | -40-70°C |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Body Type | fixed |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Product Or Component Type | limit switch body |
| Ambient Air Temperature For Operation | -25-70°C |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Compatible Manufacturer Part Number | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| Compatible Manufacturer Model Number | ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 |
| Package Quantity | 1 |
