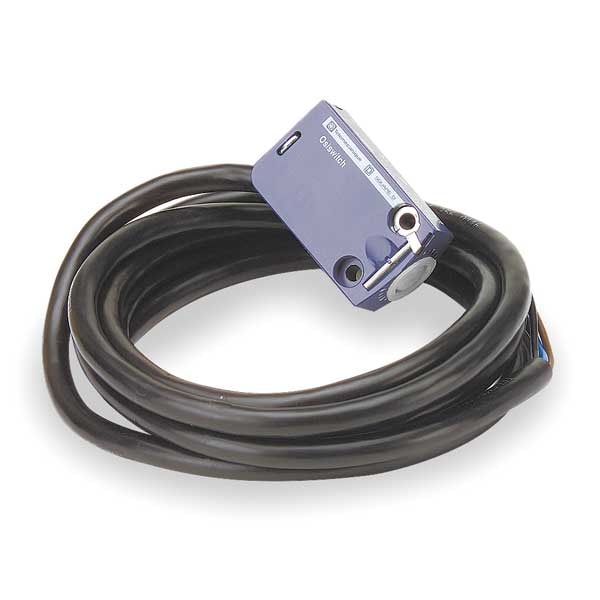

Cuerpo de interruptor de límite miniatura 1NC/1NO tipo Nema 4X, 6P, 12, 13, Conexión eléctrica: Cable pre-cableado.
| Item | Miniature Limit Switch Body |
|---|---|
| For Use With | XCMD Series Limit Switches |
| Contact Form | 1NO/1NC |
| Depth | 16 mm |
| Height | 50-50 mm |
| AC Contact Rating | 6 A @ 300 V |
| Width | 30 mm |
| IP Rating | IP66, IP67 |
| NEMA Rating | 12, 13, 4X, 6P |
| Standards | IEC 60947-5-1 |
| Electrical Connection | Snap-In Base with 2m PVR Cable |
| Operating Temp. | -13 to 158 deg F |
| Series | XCMD |
| Body Material | zamak |
| Material | Metal |
| Cable Length | 2 m |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Device Short Name | ZCMD |
| Cable Composition | 5 mm² x 0.75 mm² |
| Associated Head | ZCE10 || ZCEF2 || ZCE06 || ZCE07 || ZCE27 || ZCE63 || ZCE14 || ZCEF0 || ZCE11 || ZCE28 || ZCE67 || ZCE21 || ZCE08 || ZCE64 || ZCE65 || ZCE29 || ZCE01 || ZCE62 || ZCE13 || ZCE02 || ZCE24 || ZCEG1 || ZCE66 || ZCE09 |
| Product Compatibility | XCMD |
| Positive Opening | with |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
| Design | miniature |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
| Body Type | fixed |
| Contacts Insulation Form | Zb |
| [Ui] Rated Insulation Voltage | 300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14 |
| Contact Operation | snap action |
| Wire Insulation Material | PvR |
| Short-Circuit Protection | 6 A cartridge fuse gG |
| Number Of Poles | 2 |
| Contacts Material | silver plated contacts |
| Series Name | standard format |
| Minimum Actuation Speed | 0.01 m/min |
| Contacts Type And Composition | 1 NC + 1 NO |
| Product Or Component Type | limit switch body |
| Ambient Air Temperature For Storage | -40-70°C |
| Indicating Light | No Indicating Light Included |
| Manufacturer Warranty Length | 18 mo |
| Mounting Hole Diameter | 0.17 in |
| Compatible with Series | XCMD |
| Overall Height | 1.97 in |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Overall Width | 1.18 in |
| Number of Mounting Holes | 2 |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 12, 13, 4X, 6P |
| Operating Temperature - Minimum | -13 deg F |
| Overall Depth | 0.63 in |
| Mounting Hole Horizontal Center to Center Distance | 21 mm |
| Compatible with Manufacturer Model Number | ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1 |
| Body Configuration | Non Plug-In |
| Compatible Manufacturer Part Number | ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1 |
| Compatible Manufacturer Model Number | ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1 |
| Package Quantity | 1 |
