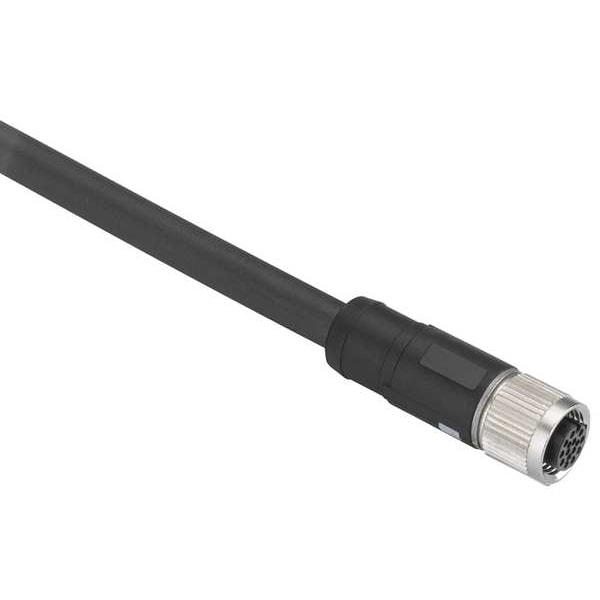

Cable recto con conector hembra M12 de 10 metros.
| Item | Cable Straight With Female M12 Conn 10M |
|---|---|
| For Use With | AC Powered Sensors |
| Temp. Range | -31 to 194 deg F |
| Standards | cULus |
| Cable Length | 10 m |
| End 2 Number of Pins | 8 |
| Jacket Material | PUR |
| End 2 Gender and Plug End | Female Straight |
| End 1 Thread | M12 |
| Number of Conductors | 8 |
| IP Rating | IP67 |
| Max. Amps | 2 |
| Jacket Color | Black |
| End 1 Gender and Plug End | Female Straight |
| End 1 Connection Type | M12 |
| End 2 Keyway | Single |
| Max. Voltage | 30 V AC, 36 V DC |
| End 1 Keyway | Single |
| End 1 Number of Pins | 8 |
| End 2 Connection Type | M12 |
| End 2 Thread | M12 |
| End 2 Number of Keyways | 1 |
| End 1 Number of Keyways | 1 |
| Minimum Operating Temperature | -31 deg F |
| Maximum Operating Temperature | 194 deg F |
| End 2 Mounting Orientation | Straight |
| Cable Jacket Color | Black |
| End 2 Gender | Female |
| Number of Wires | 8 |
| End 1 Gender | Female |
| End 1 Mounting Orientation | Straight |
| Cable Jacket Material | PUR |
| Cordset Type | Double-Ended |
| [Ue] Rated Operational Voltage | 30 V AC || 36 V DC |
| Cable Composition | 8 mm² x 0.25 mm² |
| Ambient Air Temperature For Storage | -35-100°C |
| Cable Connector Fixing | screw-on |
| Product Certifications | cULus |
| Line Rated Current | 2 A |
| Accessory / Separate Part Category | cabling accessory |
| Status Led | without |
| Wire Insulation Material | PUR |
| Electrical Connection | straight female connector M12, 8 pins |
| Minimum Insulating Resistance | 1 GΩ |
| Series Name | Application |
| Accessory / Separate Part Type | pre-wired connectors |
| Ip Degree Of Protection | IP67 |
| Contact Resistance | 5000µOhm |
| Cable Outer Diameter | 5.2 mm |
| Ambient Air Temperature For Operation | -35-90°C static || -5-90°C flexing |
| Collar Material | stainless steel 316L |
| Package Quantity | 1 |
