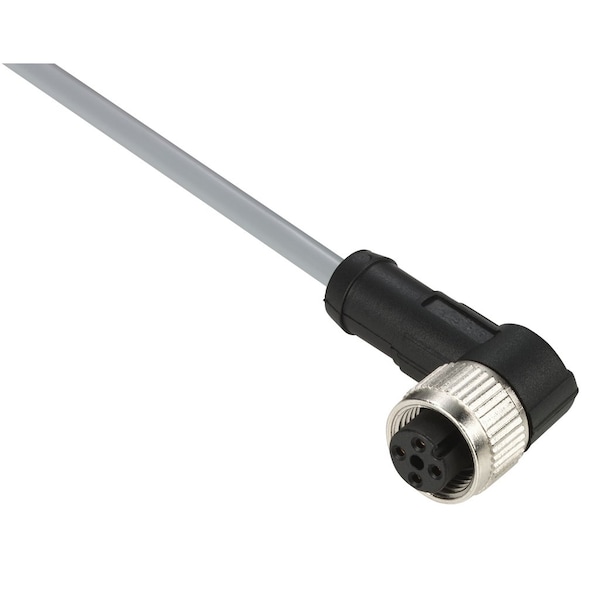

Cable conector hembra de PVC M12 de 5 pines, ángulo de 90 grados y 2 metros de longitud.
| Item | Cordset Pvc Female M12 5P 90D 2M |
|---|---|
| Cable Length | 2 m |
| Electrical Connection | elbowed female connector M12, 5 pins |
| Ambient Air Temperature For Storage | -25-80°C |
| Series Name | general purpose |
| Cable Outer Diameter | 5.2 mm |
| Accessory / Separate Part Category | cabling accessory |
| Cable Connector Fixing | screw-on |
| Contact Resistance | 5000µOhm |
| Line Rated Current | 3 A |
| Product Certifications | cULus |
| Collar Material | metal |
| Accessory / Separate Part Type | pre-wired connectors |
| [Ue] Rated Operational Voltage | 60 V AC || 75 V DC |
| Wire Insulation Material | PVC |
| Minimum Insulating Resistance | 1 GΩ |
| Cable Composition | 5 x 0.25 mm² |
| Ip Degree Of Protection | IP67 || IP65 |
| Status Led | without |
| Ambient Air Temperature For Operation | -25-80°C static |
| Package Quantity | 1 |
