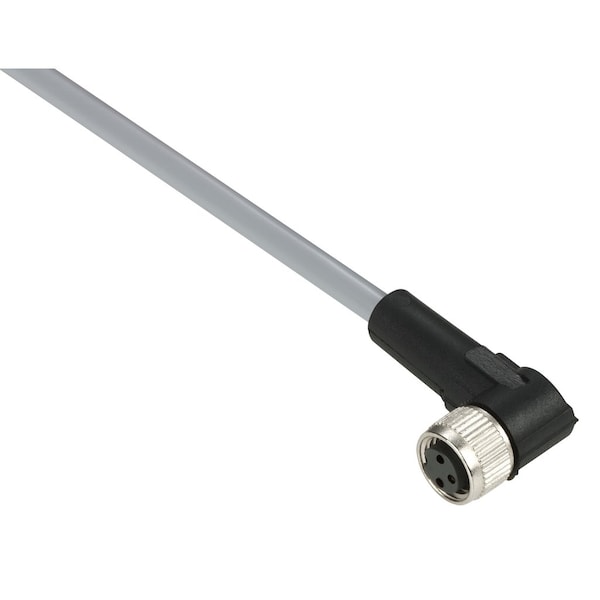

Cordset de PVC hembra M8 3P 90 grados 2 metros.
| Item | Cable |
|---|---|
| Cable Length | 2 m |
| Number of Pins | 3 |
| Max. Voltage | 60VAC/75VDC |
| Max. Amps | 3 |
| Temp. Range | -25 to 80 deg C |
| IP Rating | IP67, IP65 |
| Features | Good Resistance to Moderate Mechanical Stress; Chemical Products and Humid Environments; Easy Cable Stripping; Mercury Free |
| Electrical Connection | elbowed female connector M8, 3 pins |
| Status Led | without |
| Line Rated Current | 3 A |
| Cable Composition | 3 x 0.25 mm² |
| [Ue] Rated Operational Voltage | 60 V AC || 75 V DC |
| Ambient Air Temperature For Operation | -25-80°C static |
| Contact Resistance | 5000µOhm |
| Wire Insulation Material | PVC |
| Cable Connector Fixing | screw-on |
| Product Certifications | cULus |
| Ambient Air Temperature For Storage | -25-80°C |
| Minimum Insulating Resistance | 1 GΩ |
| Series Name | general purpose |
| Ip Degree Of Protection | IP65 || IP67 |
| Accessory / Separate Part Type | pre-wired connectors |
| Cable Outer Diameter | 4.6 mm |
| Collar Material | metal |
| Accessory / Separate Part Category | cabling accessory |
| Package Quantity | 1 |
