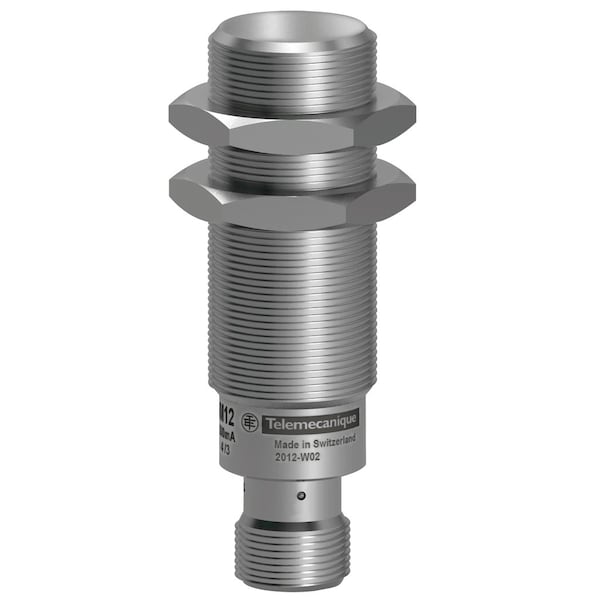

DC PNP No 3 cables flush conector M12 de 10 mm
| Item | Dc Pnp No 3Wir Flush Sn 10Mm Conn M12 |
|---|---|
| Proximity Sensor Style | Cylindrical M18 |
| Measurement Range | 8 to 15 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NO |
| Length | 64 mm |
| Max. Detecting Distance | 10 mm |
| Proximity Sensor Electrical Connection | Male Connector M12, 4 Pins |
| Depth | 18 mm |
| Basic Proximity Sensor Case Material | Stainless Steel |
| Proximity Sensor Operating Frequency | Less than Or Equal to 300 Hz |
| IP Rating | IP69K, IP68 |
| Standards | cULus; CE Marked |
| Max. Current Load | 10 mA |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| Operating Temp. Range | -25 to 70 deg C |
| Application | harsh environment application |
| Series | XS9 |
| Supply Voltage Limits | 10-30 V DC |
| Differential Travel | Sr, 1...15% |
| Storage Temp. Range | -25-70 °C |
| Shock Resistance | 30 gn 11 msIEC 60068-2-27 |
| Vibration Resistance | 25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay Recovery | 0.015 msec |
| Maximum Voltage Drop | <2 V closed) |
| Maximum Delay Response | 6E-05 ms |
| Maximum Delay First Up | 40 msec |
| Body Type | single piece body |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Package Quantity | 1 |
