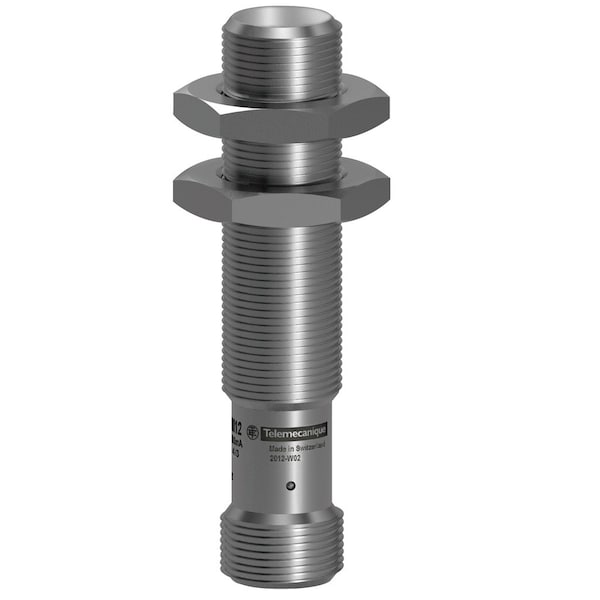

DC PNP sin 3 cables, conexión de 6 mm, montaje empotrado M12.
| Item | Dc Pnp No 3Wir Flush Sn 6Mm Conn M12 |
|---|---|
| Proximity Sensor Style | Cylindrical M12 |
| Proximity Sensing Method | Inductive |
| Measurement Range | 4 to 8 mm |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NO |
| Length | 60 mm |
| Max. Detecting Distance | 6 mm |
| Depth | 12 mm |
| Proximity Sensor Electrical Connection | Male Connector M12, 4 Pins |
| Basic Proximity Sensor Case Material | Stainless Steel |
| Proximity Sensor Operating Frequency | Less than Or Equal to 600 Hz |
| Max. Current Load | 10 mA |
| Operating Temp. Range | -25 to 85 deg C |
| Standards | cULus; Ecolab; CE Marked |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| IP Rating | IP69K, IP68 |
| Application | Food and Beverage |
| Shock Resistance | 30 gn 11 msIEC 60068-2-27 |
| Differential Travel | Sr, 1...15% |
| Series | XS9 |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Supply Voltage Limits | 10-30 V DC |
| Maximum Voltage Drop | <2 V closed) |
| Vibration Resistance | 25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6 |
| Body Type | single piece body |
| Maximum Delay Response | 6E-05 ms |
| Maximum Delay First Up | 40 msec |
| Storage Temp. Range | -25-85 °C |
| Maximum Delay Recovery | 0.015 msec |
| Package Quantity | 1 |
